Magazine Destacker Combo Loader

ETE, your trusted SMT partner. All kinds of AI/SMT spare parts and equipment available.

Magazine Destacker Combo Loader

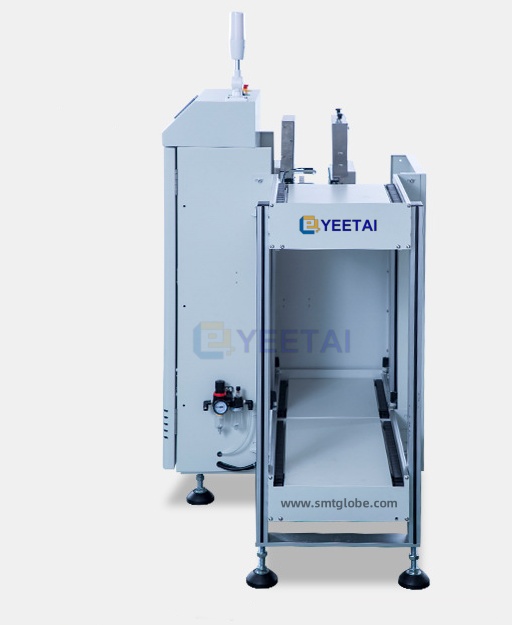

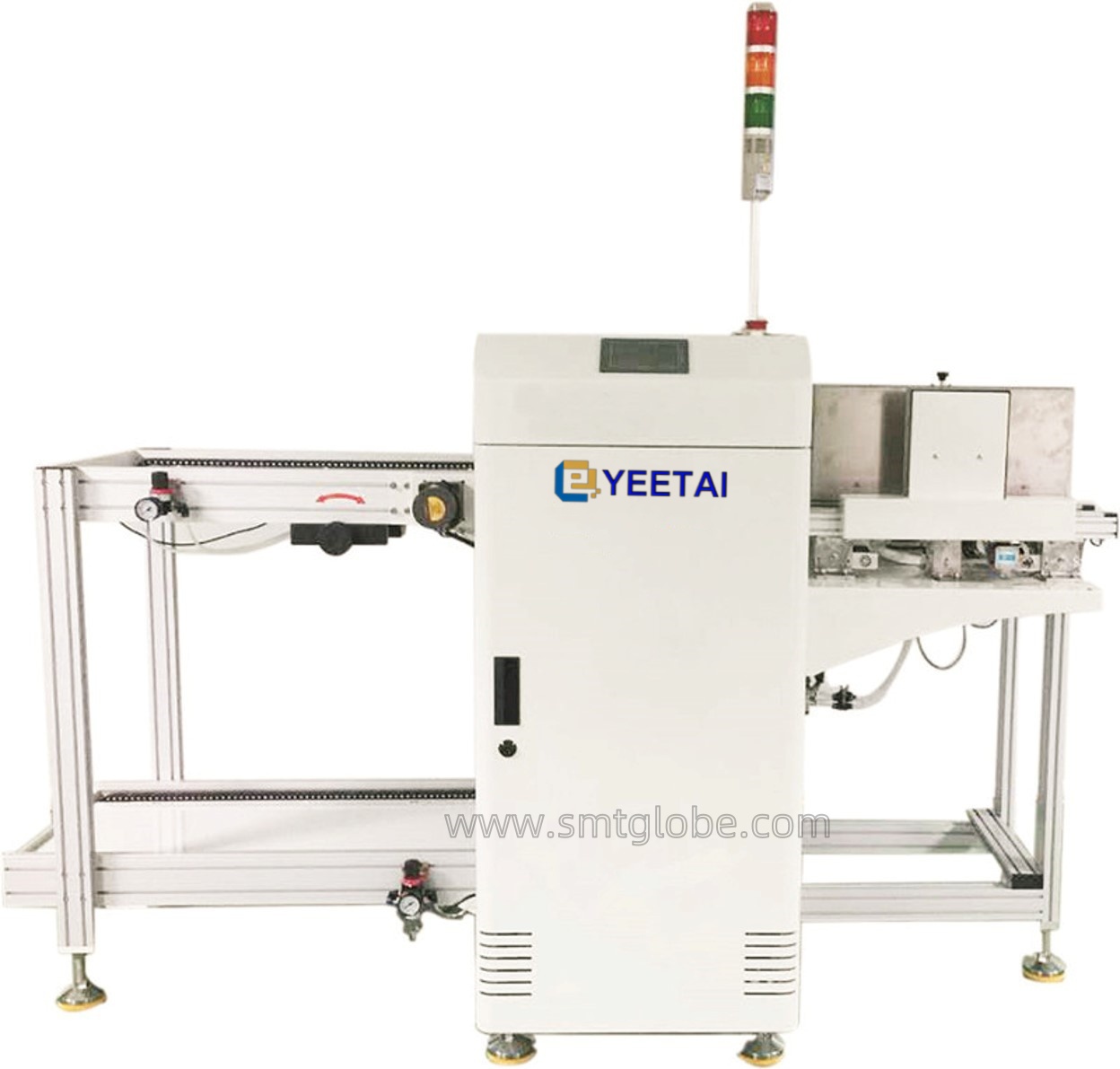

Magazine Destacker Combo Loader is used to load PCBs onto the production line from either magazines or stacks, simplifying double-sided board assembly. Ideal for double-sided assembly. Load bare PCB from stacks or partial assemblies from magazines.

No PCB breakage guaranty because of special gas circuit design.

Destackerer loader and pallet conveyor compatible.

Use friendly membrane control panel.

Increase board without interference.

Bypass mode provided.

Adjustable transfer height.

Interface mounting brackets.

SMEMA compatible

Share

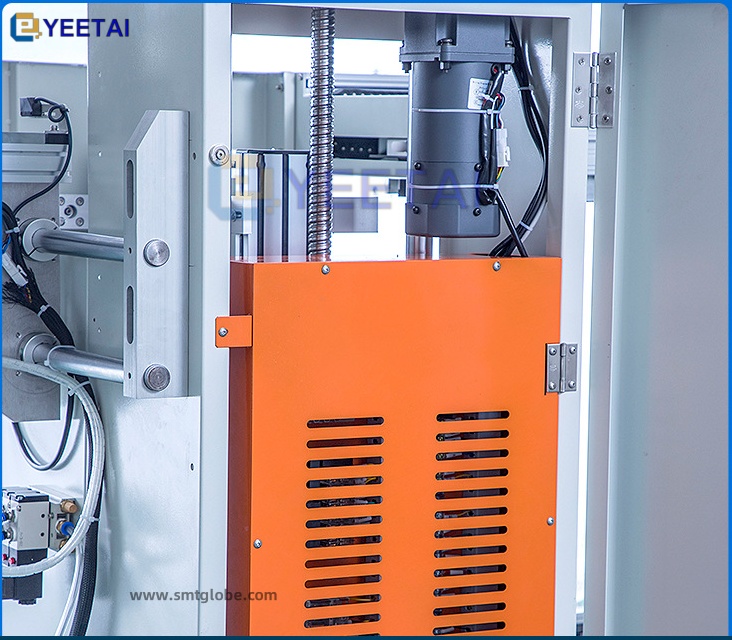

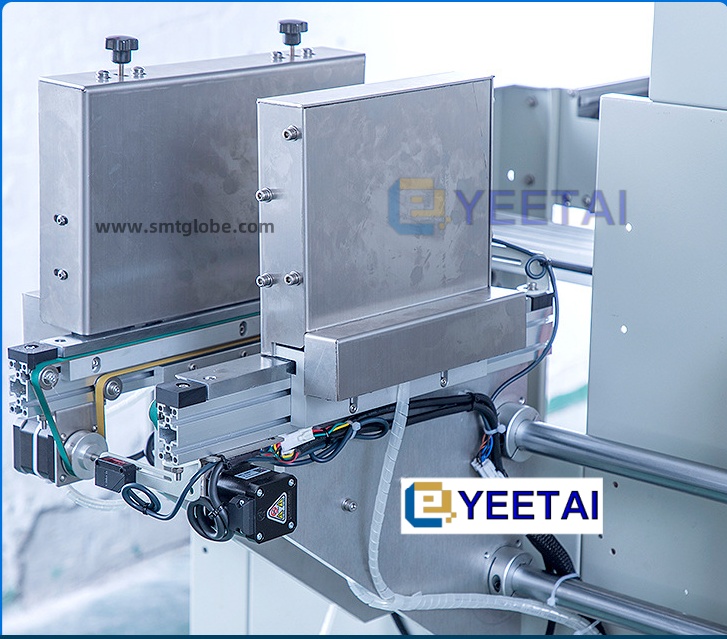

The Magazine Destacker Combo Loader streamlines the process of loading PCBs onto the production line, whether they come from magazines or stacks. This makes it particularly advantageous for double-sided board assembly. This versatile equipment effortlessly handles bare PCBs from stacks or even partial assemblies from magazines, catering to a wide range of production needs with ease and efficiency.With a 200-board stack capability and adjustable transfer height, this loader efficiently loads bare PCBs to the production line, ensuring smooth operations and flexibility.

Features:

  • The Magazine Destacker Combo Loader features a special gas circuit design that guarantees no PCB breakage during operation.
  • It is compatible with Destackerer loaders and pallet conveyors, enhancing overall production efficiency.
  • The machine has a user-friendly membrane control panel for easy operation and monitoring.
  • Besides, the SMT loader ensures increased board handling without interference, optimizing workflow and productivity.
  • A bypass mode is provided for seamless operation in various production scenarios.
  • The transfer height is adjustable, allowing for customization based on specific production requirements.
  • Interface mounting brackets are included for convenient installation and integration into existing production lines.
  • The Magazine Destacker Combo Loader is SMEMA compatible, enabling smooth communication and coordination with other equipment in the production line.

Technical specifications

Transport height:900mm ±20mm

Transfer direction:L to R OR R to L

Cycle time: 12 seconds Aprox. Or specify

Air supply& consumption: 4-6 bar,30 ltr/min max.

Power supply:110V /220V, 50 Hz/ 1 Ph,

Power consumption:max 300VA

PCB capacity: 200 pcs (0.6mm)

Pitch distance:10.20.30.40mm pitch or specify

Magazine qty: 2 magazine(upper*1,lower*1)

Magazine storage: 50 pcs.

Belt type: round belt (flat belt)

ModelDimension (L*W*H.MM)PCB size(MM)Weight(KG)Rack size(L*W*H.MM)
EDL2501850×855×125050*50-350×250250 KG355*320*563
EDL3902320×995×125050*50-460×390340KG535*460*563
Maximum capacity of circuit board200 pieces (1mm thick circuit board)
 Cycle Timeabout 8 seconds
 power supply220-230V AC (user specified), single phase
electrical loadMaximum 180 VA
air pressure4-6 bar
air flow volumeup to 30 l/min
Transmission height900±20mm (or user specified)
Transmission directionLeft → Right or Right → Left (optional)
power supplySingle phase 220V
Starting power/no-load power300W
Lifting step distance10, 20, 30, 40, 50 (mm) can be set arbitrarily
compressed air5-6KG
fixed edgeFront fixed (rear fixed can be customized)
Transmission directionLeft to right (can be customized to right)
Transmission height900±20mm
Step size selection1~5 steps (10mm step)
Withstand voltageAC terminal to ground 1500VAC, 1 minute
Usage environmentAn environment free of corrosive gases and dust
Anti-interferenceVoltage noise: 1000Vp-p, wave width 1us, 1 minute
Cycle Timeabout 10 seconds
Maximum capacity of circuit board200 pieces (1mm thick circuit board)
conveyor motorUsing Xinyu 42*48 stepper motor
conveyor belt6.5mm wide anti-static belt
pallet cylinderYadek thin cylinder
push knifeImported Hexin steel 0.5mm thick push knife
driverXinyu stepper digital driver
 sensorHigh-precision slow reflection HUAYIFENG
Three-color lightLED three-color light (green represents normal operation, yellow represents standby state, red light represents fault alarm or no material waiting alarm)
