Our PCB shuttle conveyor can swiftly and accurately move PCB boards parallelly from one position to another. This professional SMT PCB conveyor significantly enhances production efficiency. Prior to utilizing the PCB shuttle conveyor, users should familiarize themselves with the operation manual to understand its basic functions and usage methods. Regular maintenance of the equipment is essential to ensure the machine in optimal working condition, thereby extending its lifespan and improving operational efficiency.
Specification
| Model | Dimension (L*W*H.MM) | PCB size (MM) | Weight (KG) |
| SPD330 | 500*W*1050 | 50*50-330*250 | 140KG |
| SPD460 | 600*W*1050 | 50*50-460*330 | 200KG |
| model | above | ||
| Rack size | 600*1280*1050mm | 600*tailored size*1050mm | 600*1750*900mm |
| PCB board size | 50*50-500*300mm | 50*50*500*300mm | 50*50-535*390mm |
| Machine weight | 250KG | –KG | 300KG |
| Compressed air source | — | — | 5-6kg |
| mobile car | single trolley | Customized multi-car | single trolley |
| power supply | Single phase AC220V 50Hz, 60Hz | ||
| power | 300W | ||
| fixed edge | Anterior fixation (depending on mother body) | ||
| Transport height | 900±20mm | ||
| Transport direction | Left to right (optional right to left) | ||
| Operating mode | Two-in-one, one-in-two (various working modes can be customized) | ||
| Usage environment | No corrosive gas and dust environment | ||
| Anti-interference | Voltage noise: 1000Vp-p, wave width 1us, time 1 minute | ||
| Linear Guides | Taiwan Shangyin linear slide (durable, wear-resistant) | ||

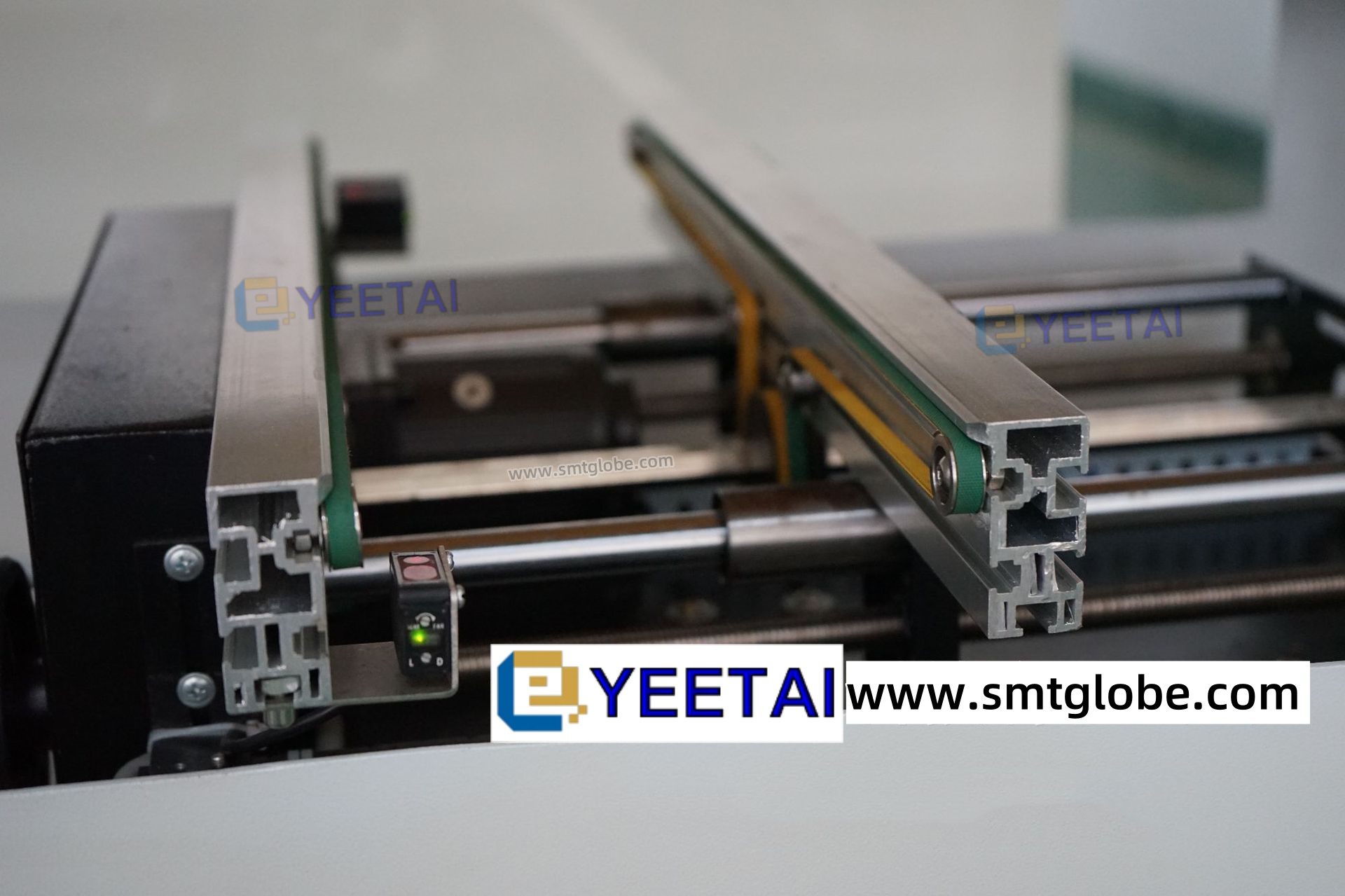

Features:
The PCB shuttle conveyor features include:

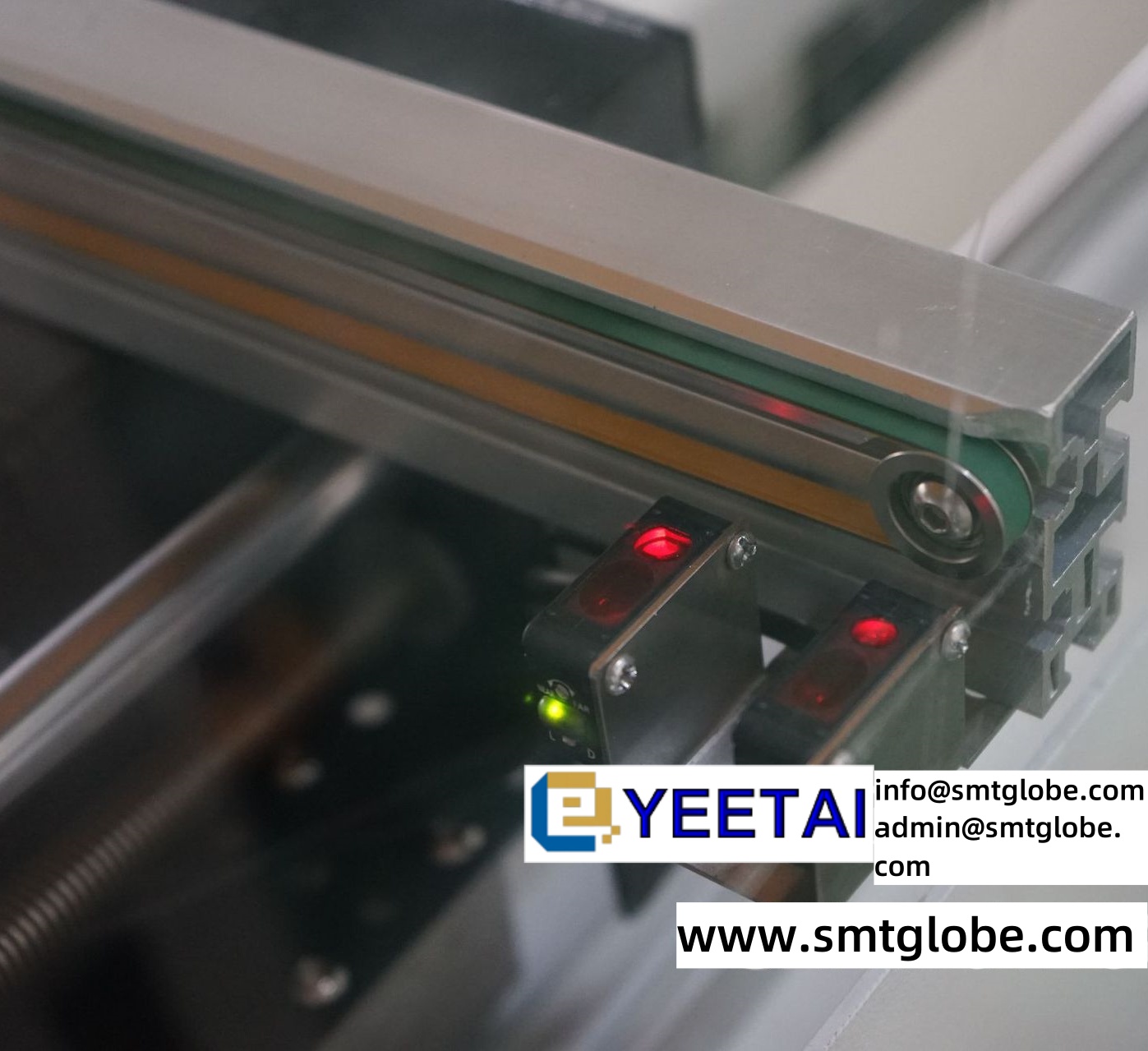

- Utilizes Panasonic PLC, imported square photoelectric sensors, and LEF intermediate relay control system for stable and reliable operation.
- Touchscreen display for operation with fault alarms, automatic diagnostic functions.
- Controlled by stepper motor for adjustable speed and distance.
- PCB shuttle conveyor also with enclosed design ensures the highest level of safety protection.
- Can open the top cover of the PCB conveyor for easy hardware maintenance.
- Employs imported steel wire belt drive for precise positioning and durability.
- User-friendly touchscreen interface for easy operation.
- Multiple selectable working modes, including check mode and bypass mode.
- Adjustable transfer distance automatically calculates based on input PCB width.
- Compatible with SMEMA interface.

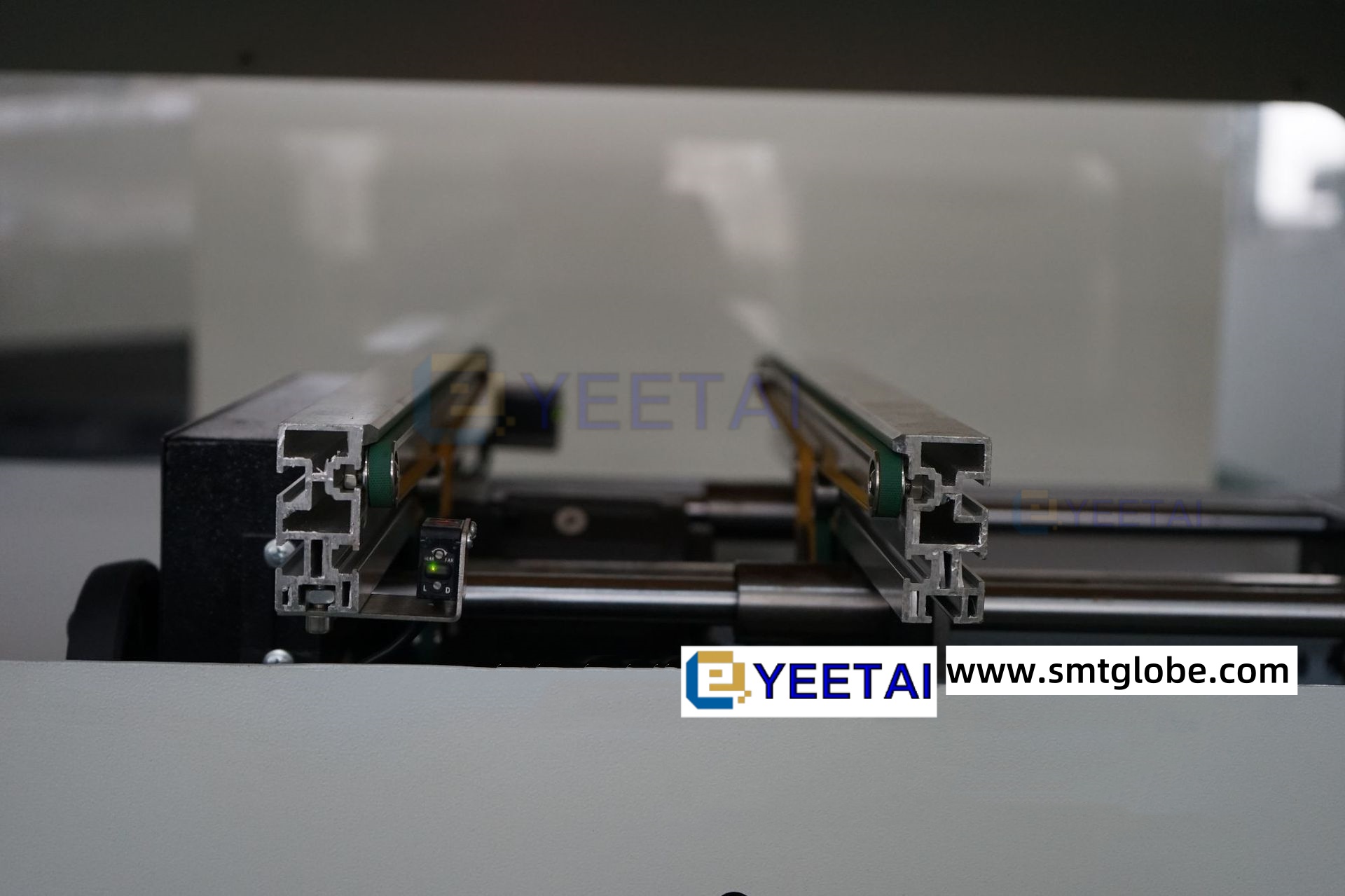

- Fully automatic PCB parallel transfer machine with high-precision translation SMT equipment features:
- Uses PLC, Omron photoelectric sensors, and LEF intermediate relay control system for stable and reliable operation.
- Touchscreen display for operation with fault alarms, automatic diagnostic functions.
- Controlled by stepper motor for adjustable speed and distance.
- Utilizes steel wire synchronous belt drive for precise positioning and durability.
- Equipped with linear slide rails for smooth sliding, durability, and precise positioning.
- PCB Translation conveyor offers multiple modes for various production processes, easy to operate.
- Conveyor height is 900mm±30.
- Power supply: single-phase 220V 50/60HZ 100W.
- Enclosed design ensures the highest level of safety protection.
- Top safety cover can be opened for easy hardware maintenance.
- User-friendly touchscreen interface for easy operation.
- Sturdy and balanced width adjustment device (hand-operated screw rod adjustment).
- Adjustable transfer distance, compatible communication SMEMA interface.
