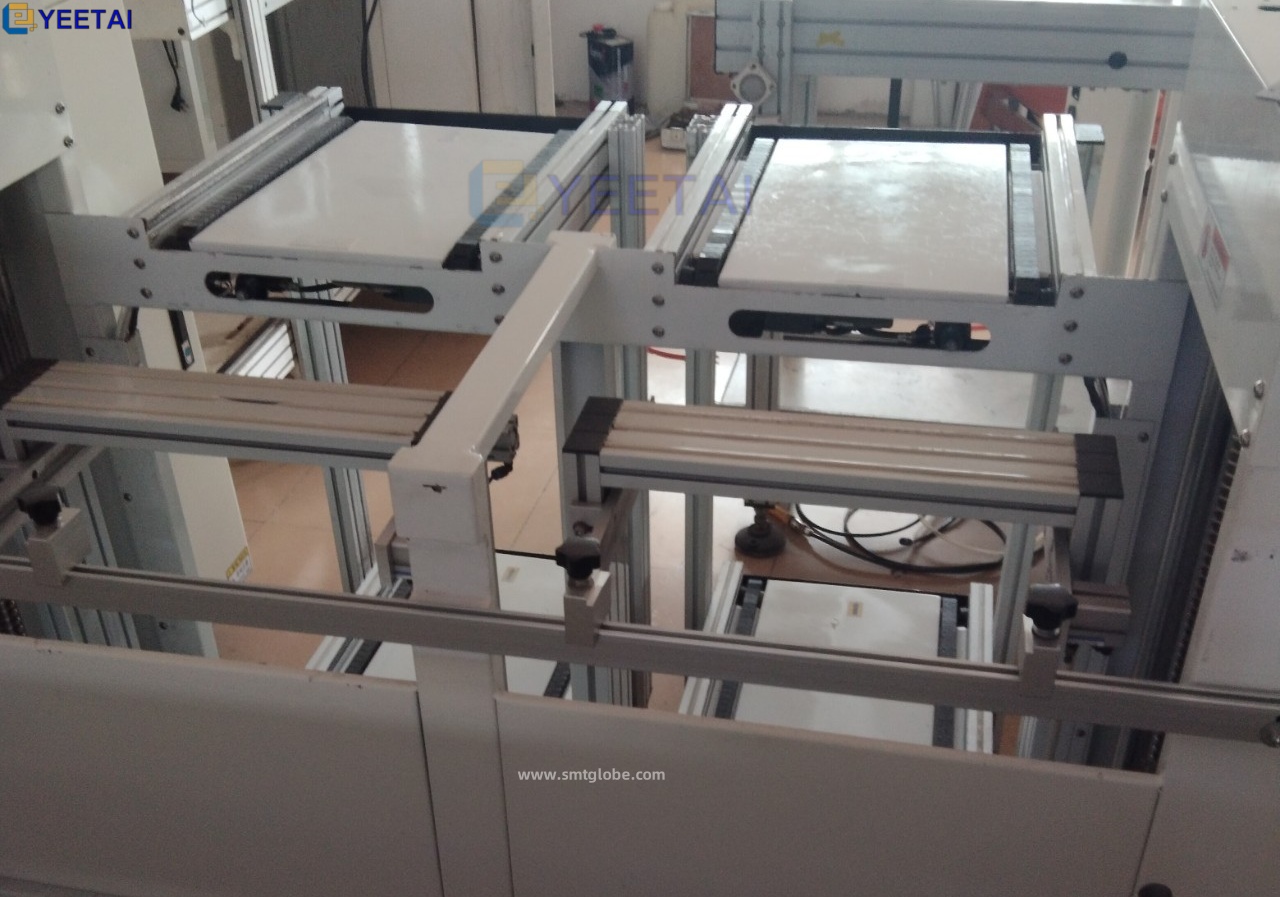

Dual Magazine Line Loader features two lanes that can simultaneously transport PCBs for two different production lines. This 2 lane Magazine Line Loader features a robust and stable sheet metal mainframe design. It comes with an effective cylinder pusher design that ensures PCB boards not damaged during transportation. This design enhances production line efficiency, ensuring smooth operation and maximizing productivity. The PCB loader also enhances the efficiency of your assembly process. The Dual Magazine Line Loader

Features:

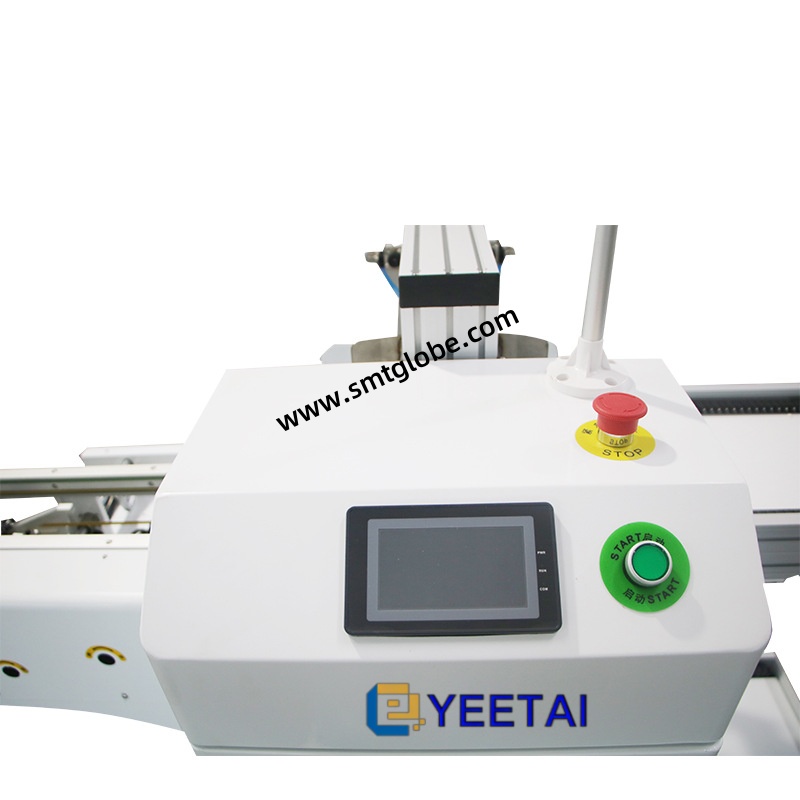

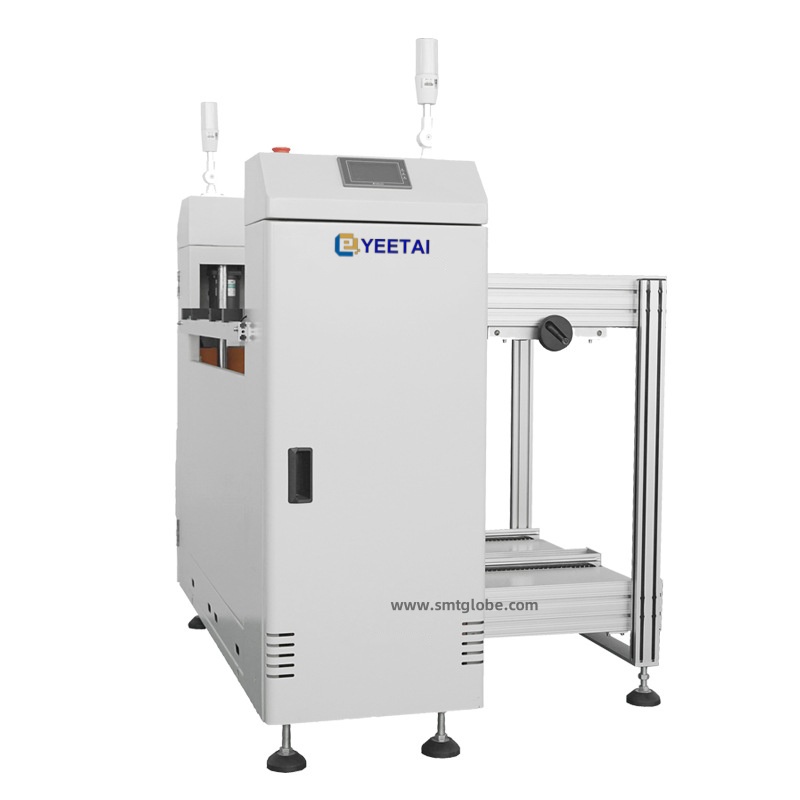

• The Dual Magazine Line Loader has a user-friendly “soft touch” LED membrane control panel for easy operation.

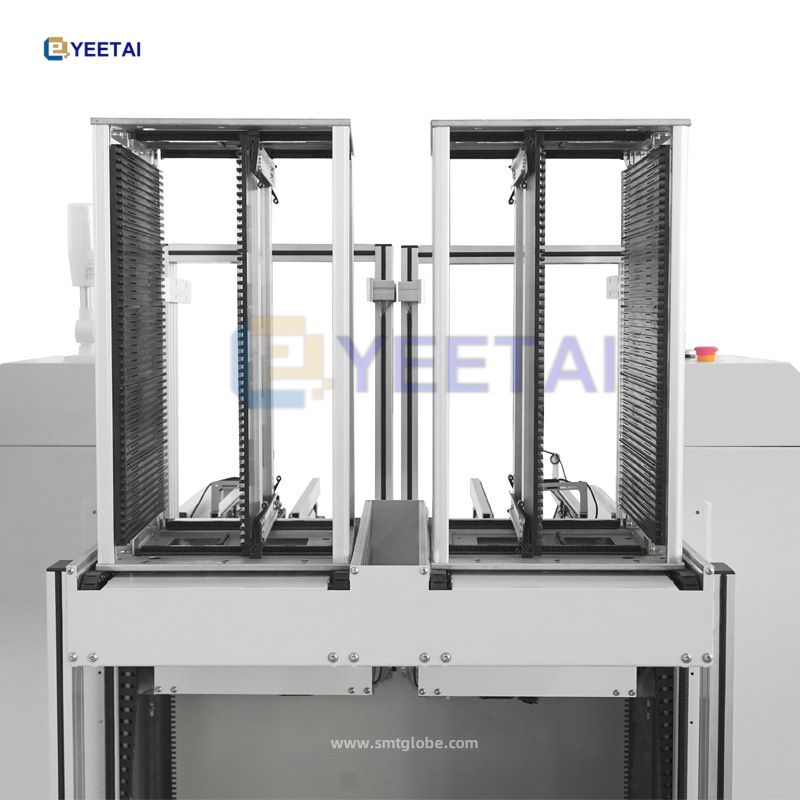

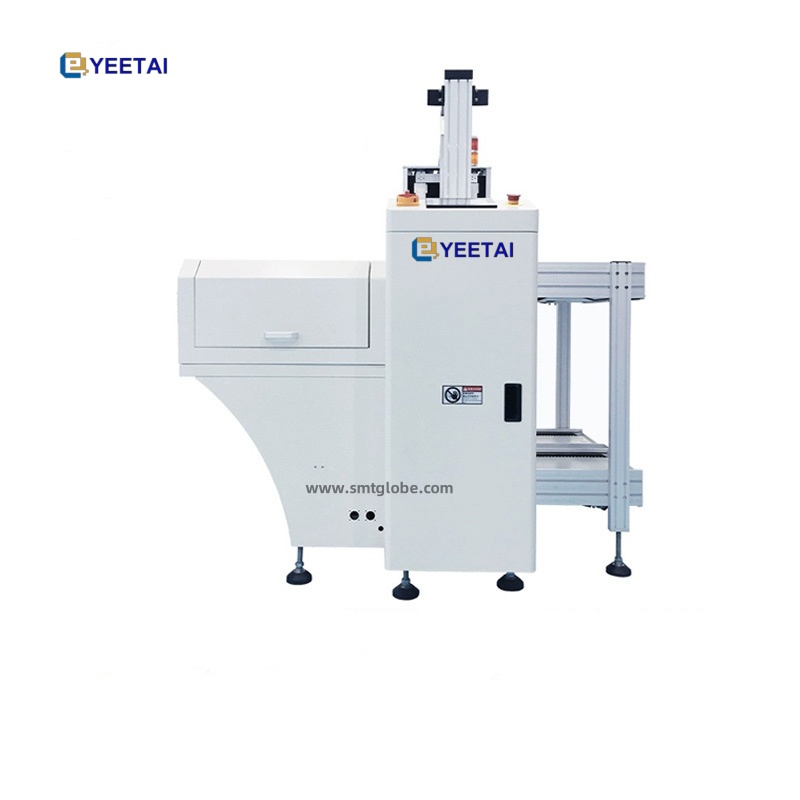

• The machine features a flexible platform that can accommodate standard magazines, providing versatility in production setups.
• The attached pneumatic pusher ensures regulated pressure for smooth PCB transportation.
• The pusher position is adjustable to the center of the magazine, allowing for precise handling of PCBs.
• Controlled by a PLC program, the machine offers advanced automation and operational efficiency.

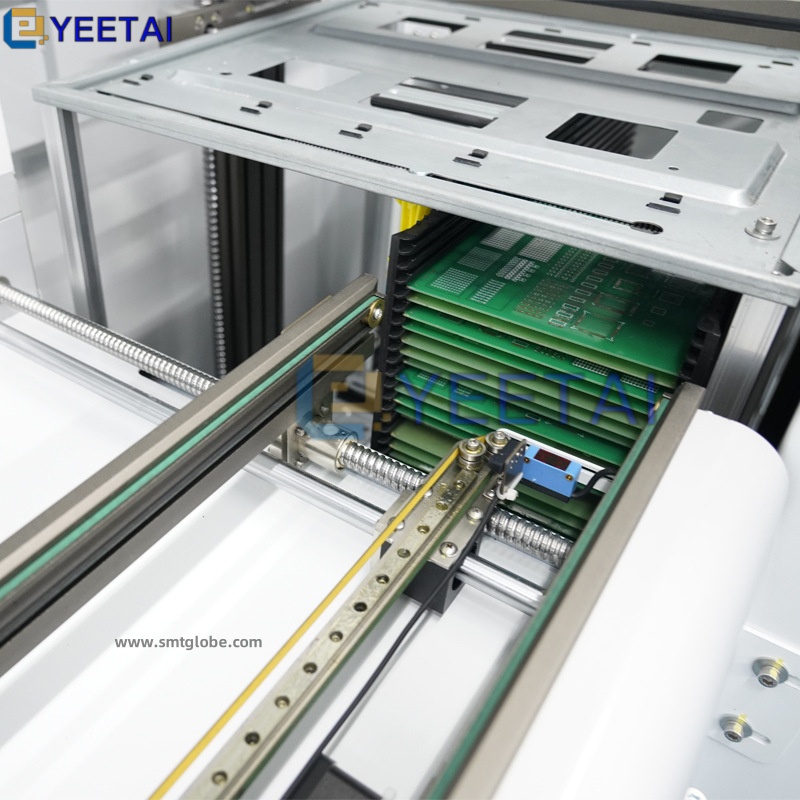

• A ball screw mechanism drives the conveyor at precise positioning and smooth operation.
• Automatic magazine alignment is achieved through upper and lower pneumatic clamping, ensuring accurate PCB loading.
• The Dual Magazine Line Loader is SMEMA compatible, allowing for seamless integration with other equipment in the production line.

Technical specifications

Transport height: 900mm ±20mm.

Transfer direction: L to R or specify R to L

Belt type: SD belt (round belt)

Conveyor Speed:0.5-20m/min adjustable

Power supply& consumption:110V /220V, 50 Hz/ 1 Ph,max 100VA

Air supply& consumption: ≥6 bar,10 ltr/min max.

Pitch distance:10.20.30.40mm pitch or specify.

Time feed: 6 seconds Approx. Or specify.

Magazine change-over time: ±30 seconds
