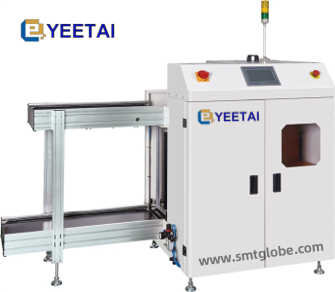

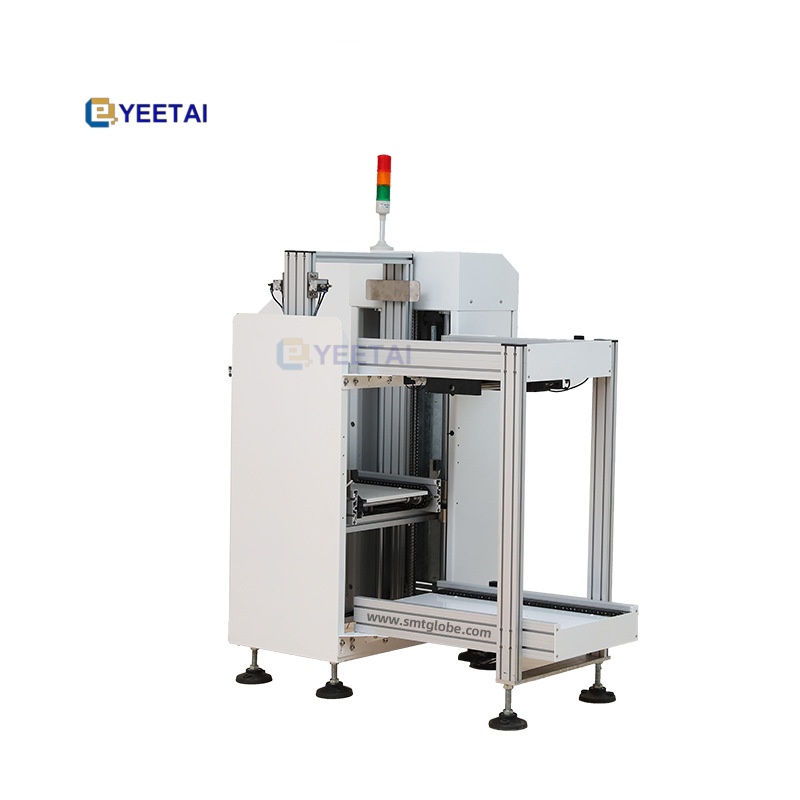

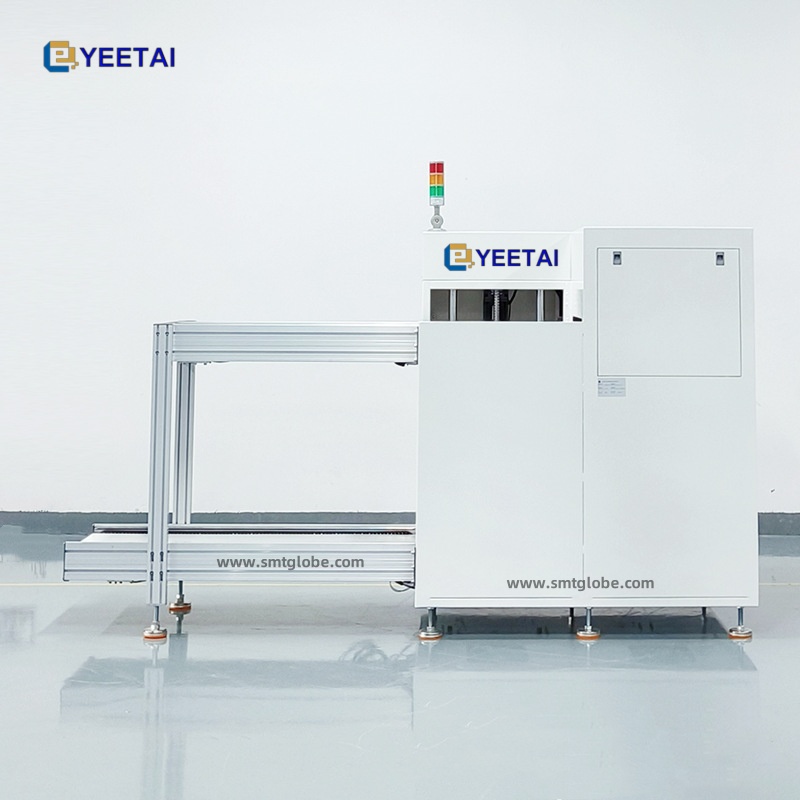

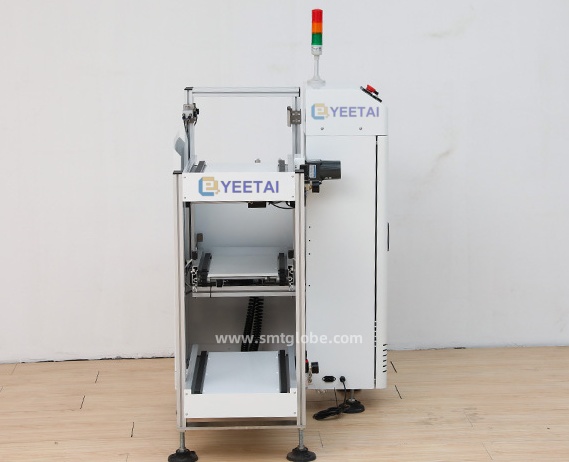

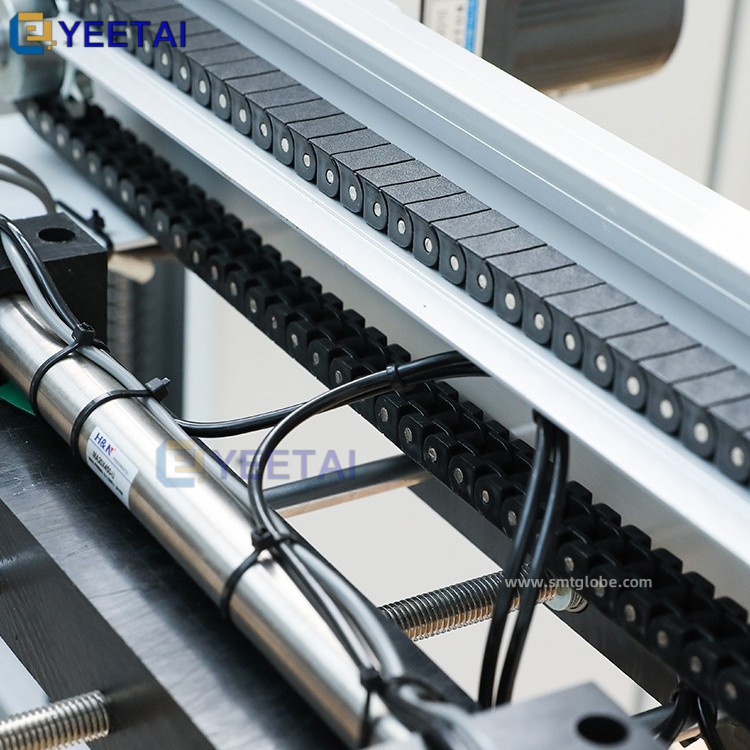

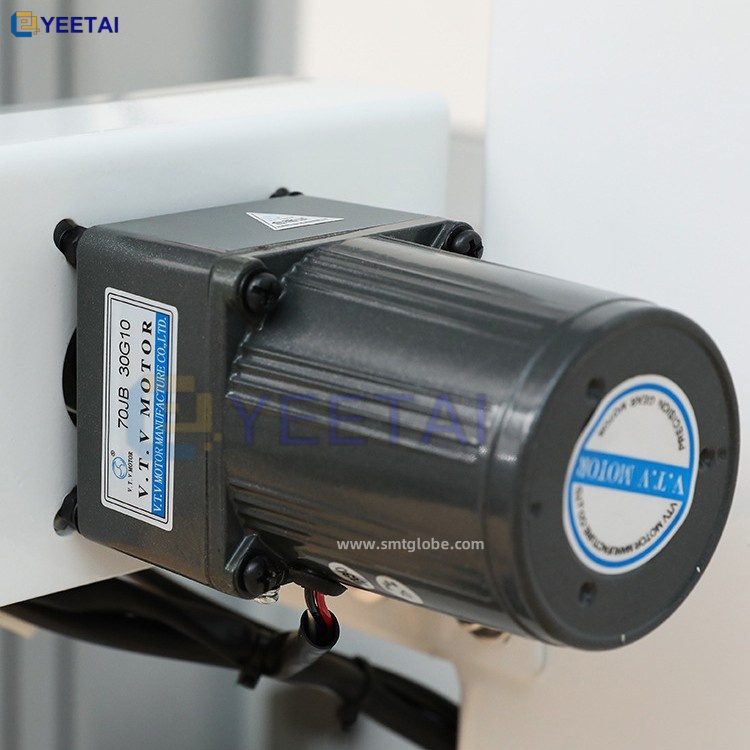

Magazine Vacuum Combo Loader: Streamlines double-sided board assembly with this loader, capable of loading bare PCBs from stacks or partial assemblies from magazines. This SMT loading machine offers vacuum loading, magazine loading, and selectable alternate modes.
The features of the Magazine Vacuum Combo Loader are as follows:
- The machine features a secure and reliable enclosed sheet metal structure with an aluminum frame, coated in white for a clean appearance.
- The machine comes with a stable and reliable microcomputer PLC control system.
- An intuitive touchscreen display allows for sensitive operation, with automatic fault diagnosis for easy user-machine interaction.
- Magazine Vacuum Combo Loader includes multiple auditory and visual alarms on the touchscreen for prompt notifications.
- The equipment can adjust the lifting distance of the material rack based on the height of components on the PCB.
- It comes with an automatic counting function for convenient production statistics.

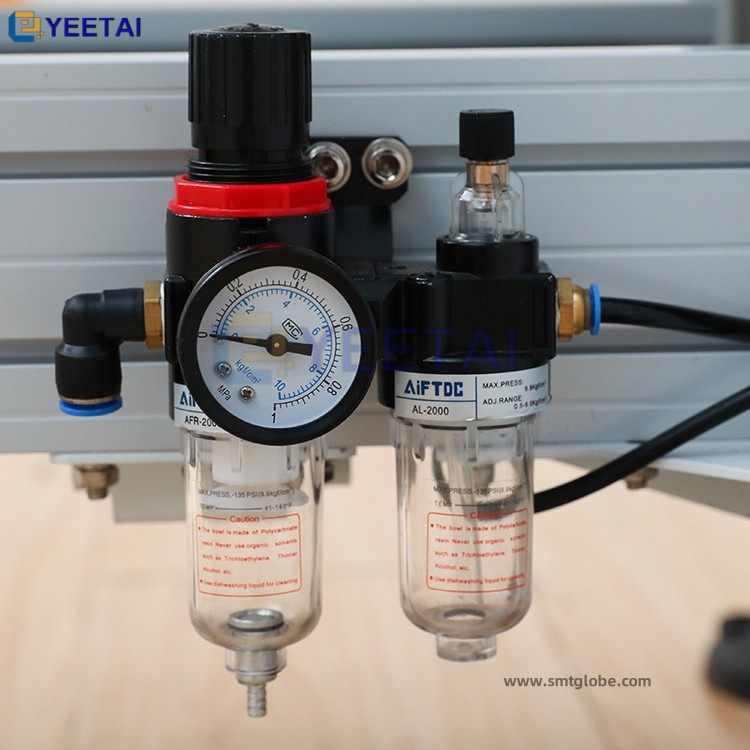

- With a specialized pneumatic system and human-centered design, the machine ensures PCBs not damaged during handling, enhancing production efficiency.
- It is compatible with standard SMEMA interfaces.
- The device for pushing PCB boards utilizes a stepper motor for precise control.
- The speed, distance, and force of the stepper motor pushing mechanism are adjustable.
- The conveyor belt speed is adjustable.
- It offers a choice between vacuum suction and board loading modes, catering to both double-sided and light board handling operations.
- The nozzle positioning features a universal moving device, allowing for flexible adjustment of suction positions based on PCB characteristics and hole positions.
- The top safety cover can be opened for easy maintenance and hardware handling when necessary.
Specification
| Model | Dimension (L*W*H.MM) | PCB size (MM) | Weight (KG) | Rack size (L*W*H.MM) |
| EVLD250 | 1640×865×1250 | 50*50-350×250 | 250 KG | 355*320*563 |
| EVLD330 | 1950×945×1250 | 50*50-445×330 | 300KG | 460*400*563 |
| EVLD390 | 2270×1110×1250 | 50*50-535×390 | 340KG | 535*460*563 |
| power supply | Single phase AC220V 50Hz, 60Hz |
| power | 350W |
| Lifting step distance | 10, 20, 30, 40, 50, the step distance can be set arbitrarily |
| Compressed air source | 5-6kg |
| PCB board thickness | 0.5-3.0mm |
| fixed edge | Front fixation (optional rear fixation) |
| Transmission height | 900±20mm |
| Suction plate device | Powerful suction nozzle head can move at will |
| Function | Both single-sided and double-sided can be realized (single-sided can save time on board insertion) |
| Transmission direction | Left to right (optional right to left) |
| Withstand voltage | AC terminal to ground 1500V for 1 minute |
| Usage environment | No corrosive gas and dust environment |
| Anti-interference | Voltage noise: 1000Vp-p, wave width 1us, time 1 minute |
