Mini PCB Loader

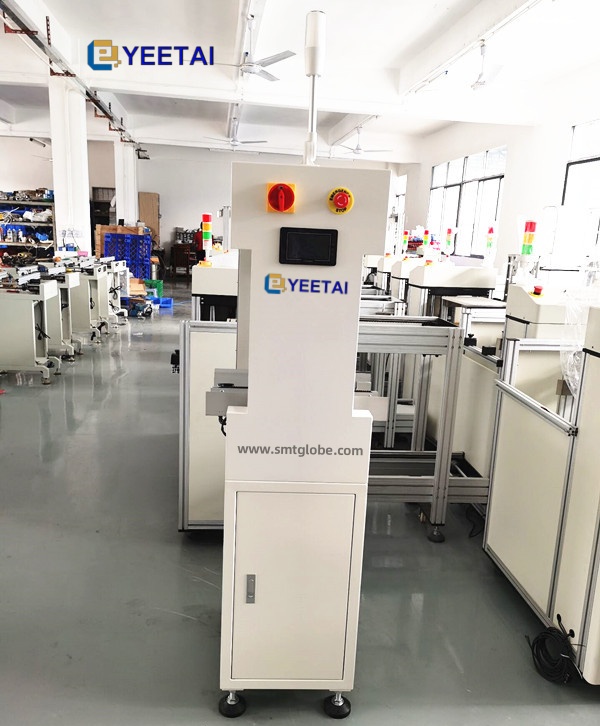

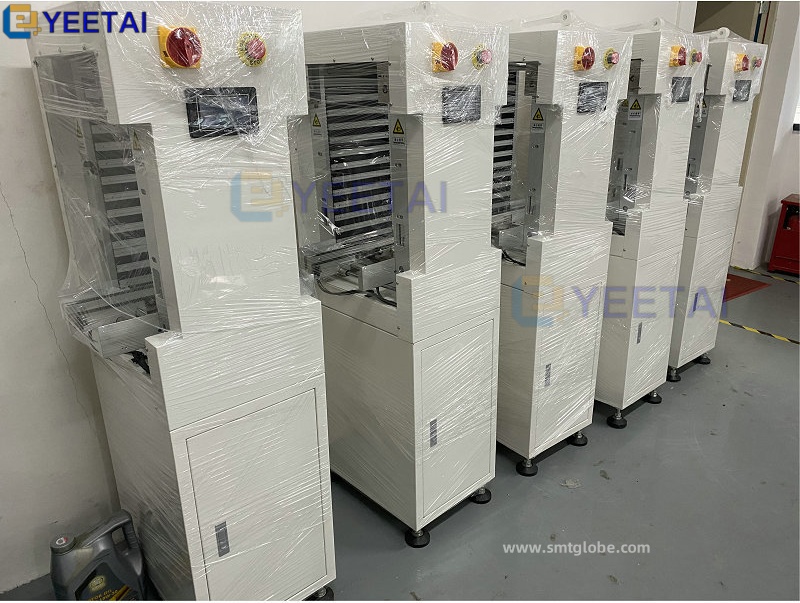

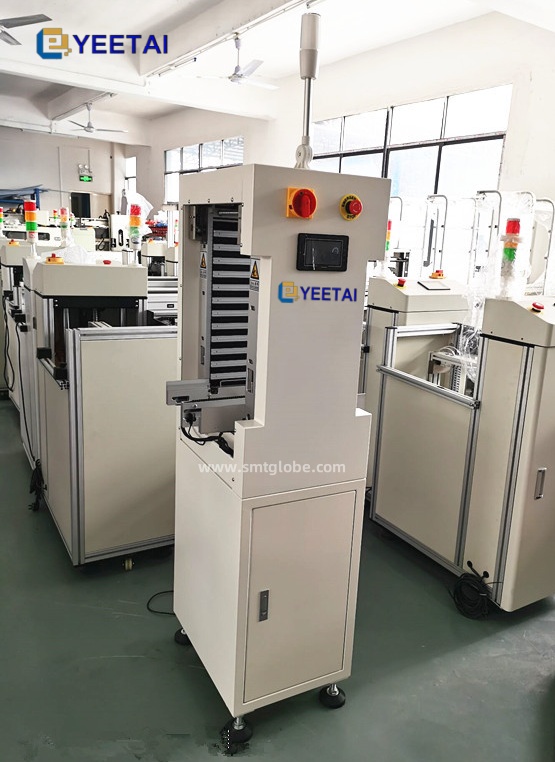

Mini PCB Loader: Ideal for SMT and FPC production lines, this loader provides semi-automatic loading with a small footprint. It offers fast, stable, and accurate retrieval positioning, saving space and enhancing efficiency.

Small footprint

Easy to operate key control interface

Closed fuselage structure ensures safe operation

Smooth and parallel width adjustment (leadscrew)

Fast, stable and accurate retrieval positioning

Double circulation tank chain structure

SMEMA compatible

Share

The Mini PCB loader is specifically designed for SMT and FPC production lines. It offers semi-automatic loading capabilities in a compact and space-saving design. This loader is ideal for small-volume production environments where space optimization is crucial. Its compact size and efficient loading features make it a perfect fit for modern manufacturing facilities. Looking to streamline their operations and maximize productivity. The Mini PCB loader excels in providing seamless and reliable loading for various types of PCBs. The machine ensures smooth production processes and high-quality output. Its user-friendly interface and intuitive controls make it easy to operate and integrate into existing production lines, enhancing overall efficiency and performance. With its versatile applications and compact footprint, the Mini PCB loader is a valuable asset for companies seeking to enhance their PCB manufacturing processes while optimizing space utilization.

Features:

  1. Compact Design: The mini loader boasts a small footprint, making it ideal for space-constrained production environments.
  2. User-Friendly Interface: Easy-to-operate key control interface allows for intuitive operation and seamless integration into existing production lines.
  3. Enhanced Safety: The closed fuselage structure ensures safe operation, providing a secure working environment for operators.
  4. Precise Width Adjustment: The leadscrew mechanism enables smooth and parallel width adjustment, allowing for precise customization to accommodate various PCB sizes.
  5. Efficient Positioning: The mini loader offers fast, stable, and accurate retrieval positioning, ensuring efficient handling of PCBs during the loading process.
  6. Dual Circulation Tank Chain: Equipped with a double circulation tank chain structure, the loader enhances reliability and durability for continuous operation.
  7. SMEMA Compatibility: The mini loader is SMEMA compatible, ensuring seamless communication and integration with other equipment in the production line.

Technical specifications

Transfer direction: L to R or specify R to L

Transport height:900mm ±20mm

Conveyor speed: 6 seconds

Power supply:110 VAC or 220VAC/50 Hz/1 Ph

Power consumption:100VA max.

Belt type: ESD flat belt

PCB max weight: ≤2kg

ModelDimension (L*W*H.MM)PCB size (MM)Weight (KG)Max PCB capacity
E-ML250500*475*140050*50- 330*25090KG50pcs (Cyclic)
E-ML350600*650*140050*50- 445*350100KG50pcs (Cyclic)
power supplySingle phase 220V
Starting power/no-load power50W
fixed edgeFront fixed (rear fixed can be customized)
Transmission directionLeft to right (can be customized to right)
Transmission height900±20mm
Withstand voltageAC terminal to ground 1500VAC, 1 minute
Usage environmentAn environment free of corrosive gases and dust
Anti-interferenceVoltage noise: 1000Vp-p, wave width 1us, 1 minute
