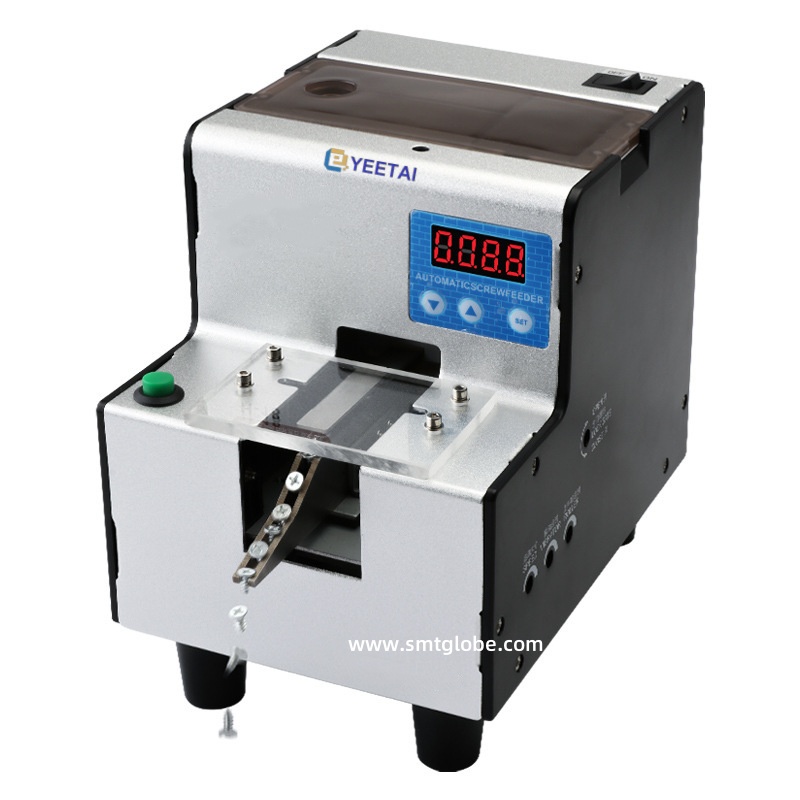

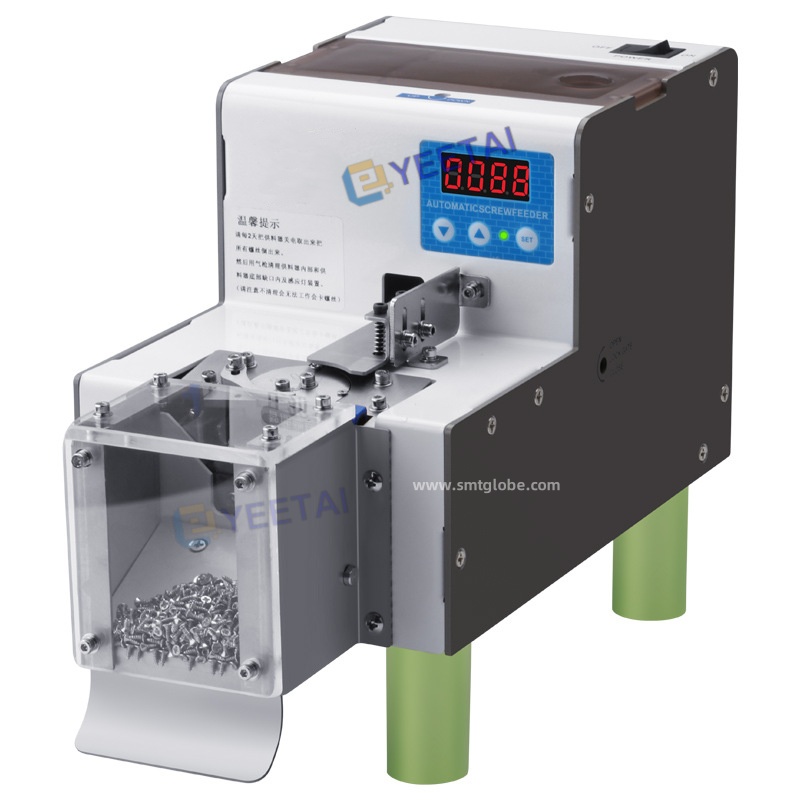

Are you still counting screws by hands? Our Automatic Screw Counter provides a fast, precise automated counting solution for you. If you are manufacturing some electronic products, this machine maybe helpful to you.

---

Key features of our Automatic Screw Counter:

• High-definition digital display with intelligent counting:
  • Digital counting function, 1–9999 pieces freely adjustable; you can set how many pieces to count with a single press of the green button, and each press resets to zero and dispenses the counted quantity automatically. It supports cumulative counting, allowing you to set a batch output quantity; after taking the batch, it will accumulate for the next batch. Adjustable intervals for automatic dispensing based on time.
• Vibration-damping feet that effectively reduce vibration:
  • The vibration-damping feet significantly reduce motor-induced vibration, ensuring steadier feeding and more precise sensing during operation.
• Smooth operation with adjustable brushes:

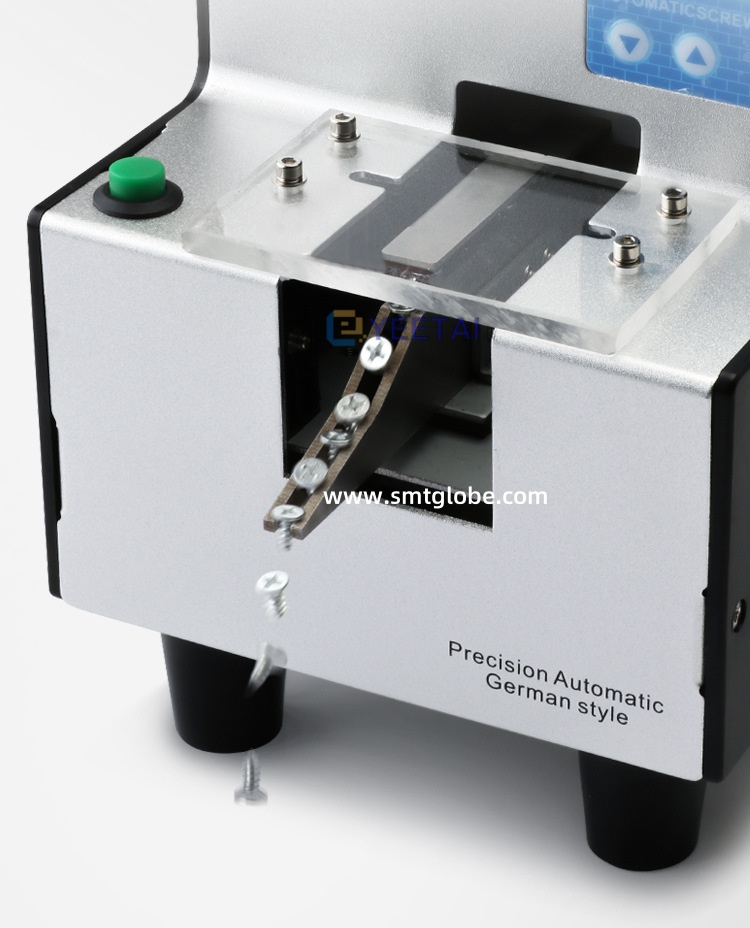

  • If screws lay horizontally and cause jams, simply adjust the entire row of brushes. They are precisely aligned with the screw heads to ensure horizontal screws are swept away.
• Compatible with multiple screw types:
  • Works with round head, flat head, countersunk, and screws with retention pieces, spacers, or washers; as long as the screw has a nut, it can be counted.
  • Adjustable track width from 1.0 to 5.0 mm, broadening the range of screws it can handle.
  • Smooth, jam-free track.
• Speed adjustable:
  • Inclined feeding for faster supply, providing a quick and accurate automated screw-counting solution. Operation speed can also be tuned to be fast or slow as needed.
• Customizable solutions:
  • We can tailor a personalized solution based on your screw shape and size.
  • Customization process: take photos or provide drawings to determine dimensions → you place the order and pay → we manufacture → screw sample debugging (100 pieces or more) → debugging complete, arrange shipment.

---

Specifications of our Automatic Screw Counter:

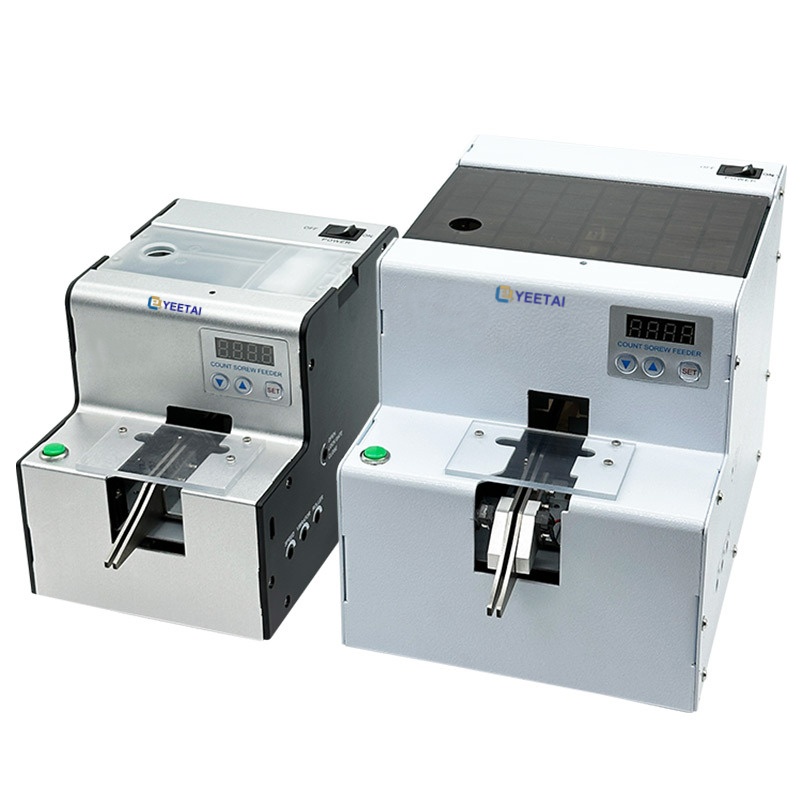

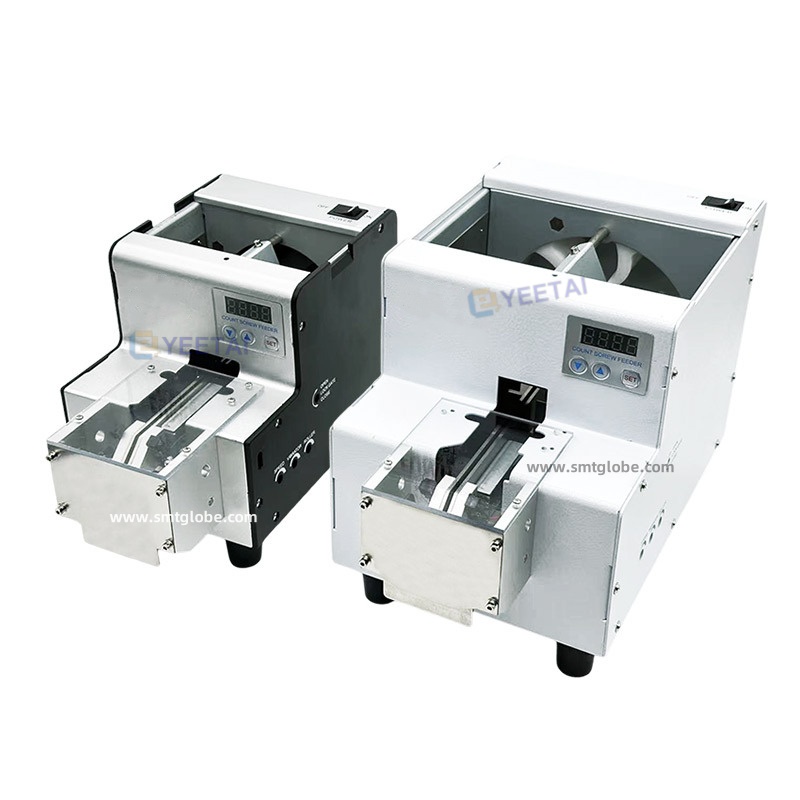

Machine model	YT-950	YT-950L
Applicable screw diameter d	‘d 1.0-5.0mm adjustable	‘d 1.0-6.0mm adjustable
Screw body length L	L≤20mm	L≤25mm
Nut diameter D	D<15mm
Machine weight	2.3KG	2.6KG
Input power supply	AC100V-240V 50-60HZ
Output power	DC15V2A
Machine dimension	L*W*H=127*182*150mm	L*W*H=127*230*173mm
Screw capacity	M1=1500pcs M2=1000pcs M3=600pcs M4=300pcs M5=200pcs	M1=3000pcs M2=2000pcs M3=1500pCs M4=1000pCs M5=600pcs M6=400pcs
Speed	2/3 pcs per second

---

Screw Counting Machine Adjustment Method

The following are operating steps and mode descriptions. Please use the button labels as in the original text when operating on the actual device.

1. Count Setting / Auto Loop Time

1. Turn on the power, press and hold the set button for 3 seconds until the light flashes.
2. Then press the “” button to set the screw quantity, range 0–9999, any value.
3. Press the Set button again to configure the auto-loop mode; the loop time will auto-repeat after 01–10 seconds.

Note: Please confirm the button names match the labels on the device to ensure correct operation.

2. Auto / Manual Setting

1. Press and hold the set button for 3 seconds until the LED flashes. Enter mode selection.
2. Press the Set button to choose between modes 1–4.

Mode Descriptions

• Mode 1: When the screw count reaches the set value, an alarm sounds. After the alarm, the count automatically resets to zero. Press the micro switch to proceed to the next cycle.
• Mode 2: When the screw count reaches the set value, an alarm sounds. After the alarm, you need to press the “” button to reset to zero. Press the micro switch to proceed to the next cycle; if you do not press the “” button to reset, the count accumulates in multiples of the set value.
• Mode 3: Normal counting continues up to 9999, then an alarm sounds. You need to press the “” button to reset to zero.
• Mode 4: Auto loop mode: When the number reaches the set value, an alarm sounds and resets to zero. After waiting for the set number of seconds, the auto-start loop mode begins. After selecting, press and hold the Set button for 3 seconds to return to the main page.
