SMT Magazine Unloader

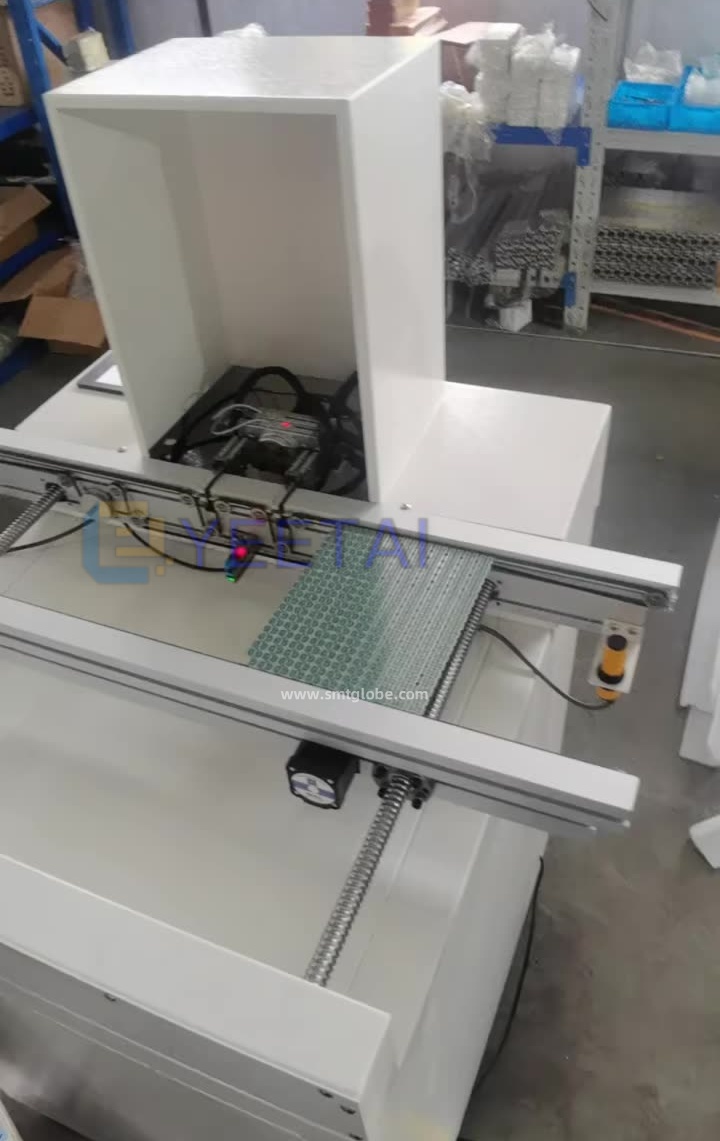

SMT Magazine Unloader: Efficiently unload PCBs from the production line with this flexible platform designed to accommodate standard magazines. Streamline your assembly process and enhance productivity.

Share

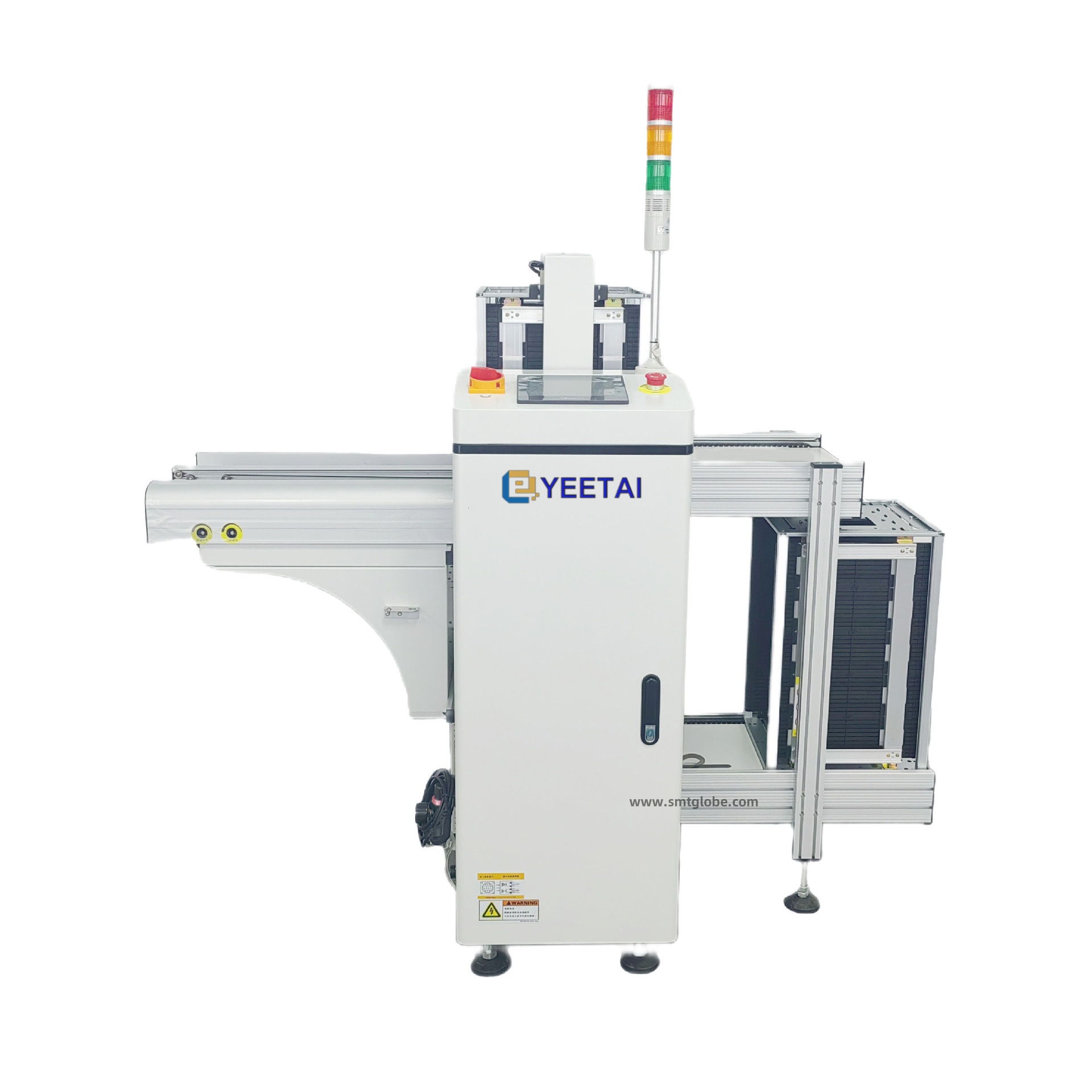

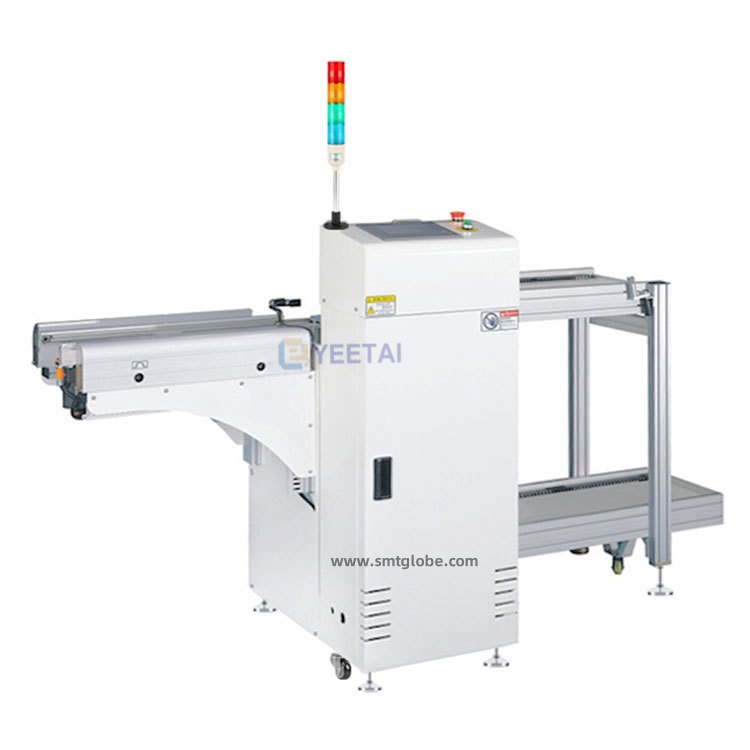

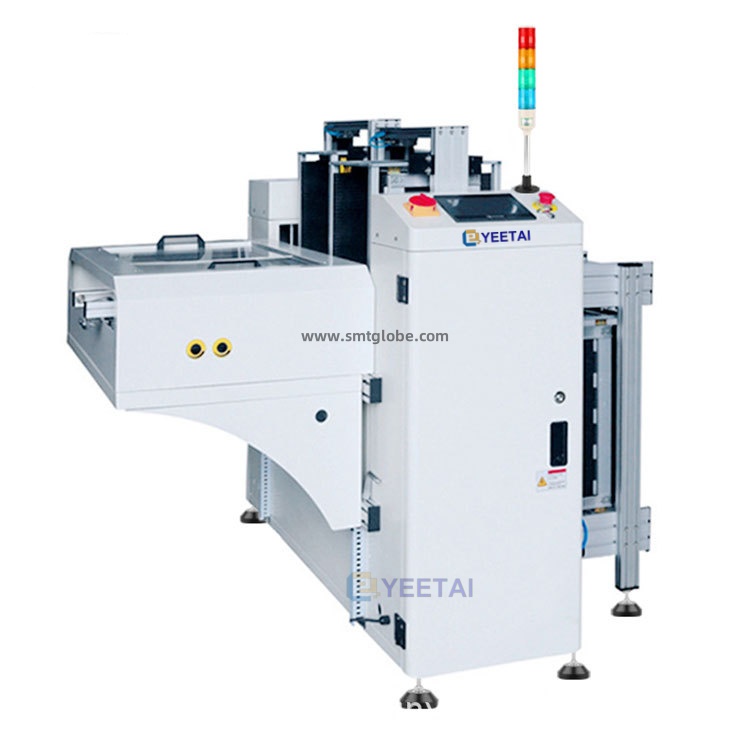

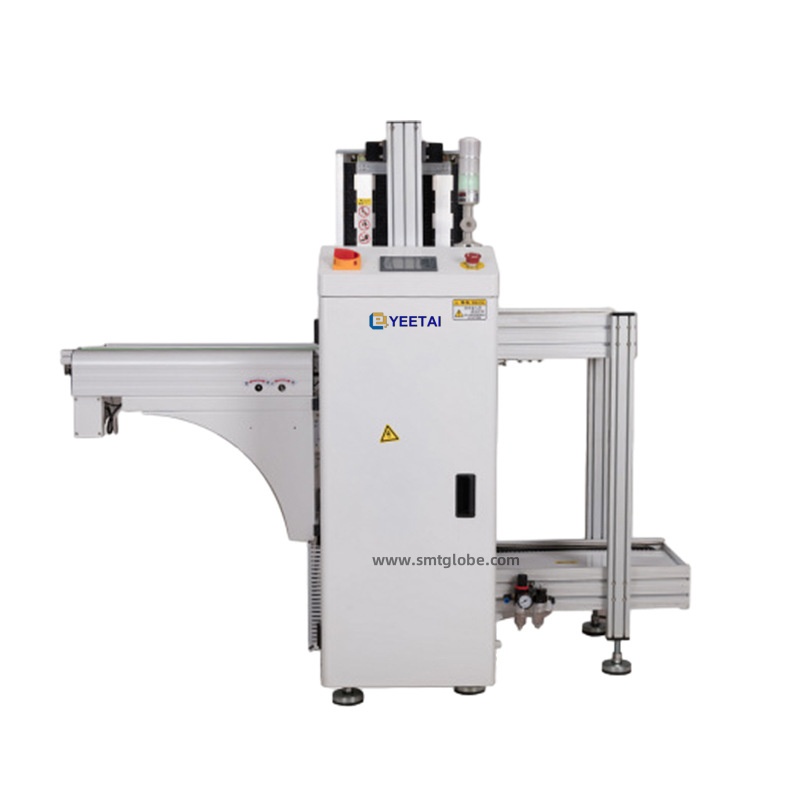

The SMT Magazine Unloader specifically automates the removal of printed circuit boards (PCBs) from a SMT production line. It boasts the following key features:

SMT Magazine Unloader is features a sturdy and stable construction to ensure reliable performance and longevity.

The unloader accommodates one magazine at the top and one at the bottom for efficient board handling.

User can swiftly execute Magazine replacement within approximately 30 seconds or as per specific requirements.

Users can easily select step sizes of 10, 20, 30, 40 mm, or specify custom dimensions for precise board positioning.

The equipment operates on either 110V or 220V, single-phase power with a maximum consumption of 250VA.

It operates effectively within a barometric pressure range of 4-6 bar, with a handling capacity of up to 10 boards per minute.

The platform offers flexibility to adapt to standard magazine sizes, enhancing versatility in production setups.

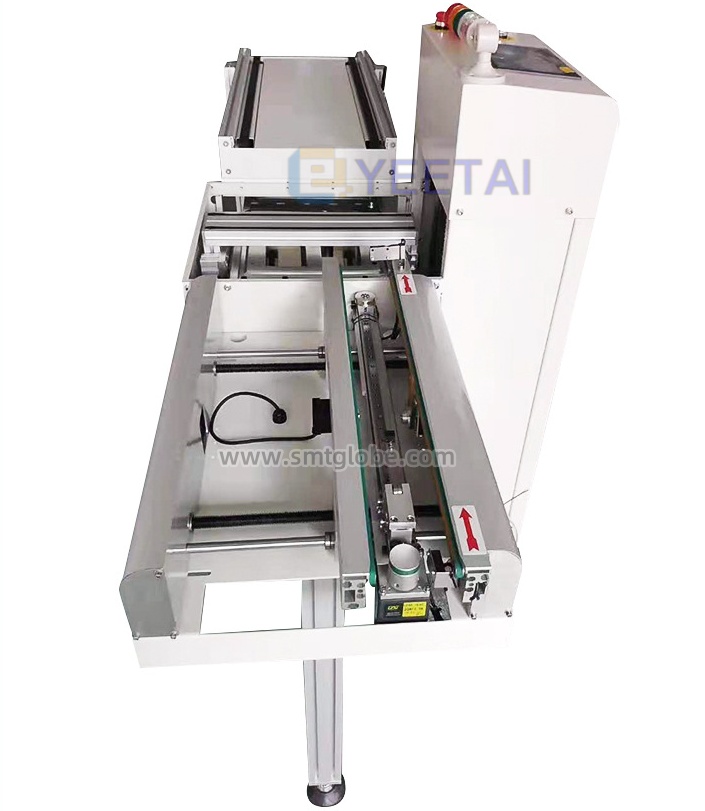

The pneumatic pusher comes with regulated pressure for consistent and controlled board handling.

The pusher position is adjustable to align precisely with the center of the magazine for accurate board extraction.

A user-friendly “soft touch” LED membrane control panel simplifies operation and enhances user experience.

The unloader is SMEMA compatible, ensuring seamless integration with other equipment in the SMT production line for enhanced automation and workflow efficiency.

Specifications

ModelDimension (L*W*H.MM)PCB size (MM)Weight (KG)Rack size (L*W*H.MM)
EULT2501730*765*125050*50-330*250160KG355*320*563
EULT3302065*845*125050*50-445*330220KG460*400*563
EULT3902660*909*125050*50-530*390280KG535*460*563
EULT4602660*970*125050×50-530×460320KG535*530*563
power supplySingle phase AC220V 50Hz, 60Hz
power150W
Lifting step distance10, 20, 30, 40, 50, the step distance can be set arbitrarily
Compressed air source5-6kg
PCB board thickness0.5-3.0mm
fixed edgeFront fixation (optional rear fixation)
Transmission height900±20mm
Transmission directionLeft to right (optional right to left)
Withstand voltageAC terminal to ground 1500V for 1 minute
Usage environmentNo corrosive gas and dust environment
Anti-interferenceVoltage noise: 1000Vp-p, wave width 1us, time 1 minute
