Mis-Print PCB Cleaner

Mis-Print PCB Cleaner is a simple type of misprinting PCB/PCBA cleaning machine with full pneumatic control, which is suitable for small batch misprinting PCB, soldered PCBA, printing scraper, etc. The machine automatically completes the cleaning and blow-drying process, and can effectively clean the organic and inorganic pollutants such as rosin flux, dust and oil remaining on the surface of SMT/THT PCBA solder paste after soldering.

  1. Constructed from durable and corrosion-resistant 304 stainless steel, the machine is built to last, with a design lifespan of up to 10 years, ensuring longevity and reliability in industrial environments.
  2. Powered entirely by compressed air, the cleaner eliminates the risk of electrical hazards, as it operates without electricity, avoiding any potential safety concerns related to sparks or electrical fires.
  3. Versatile in its functionality, the machine is compatible with both solvent and water-based cleaning solutions, providing flexibility in cleaning options to meet varying production needs.
Share

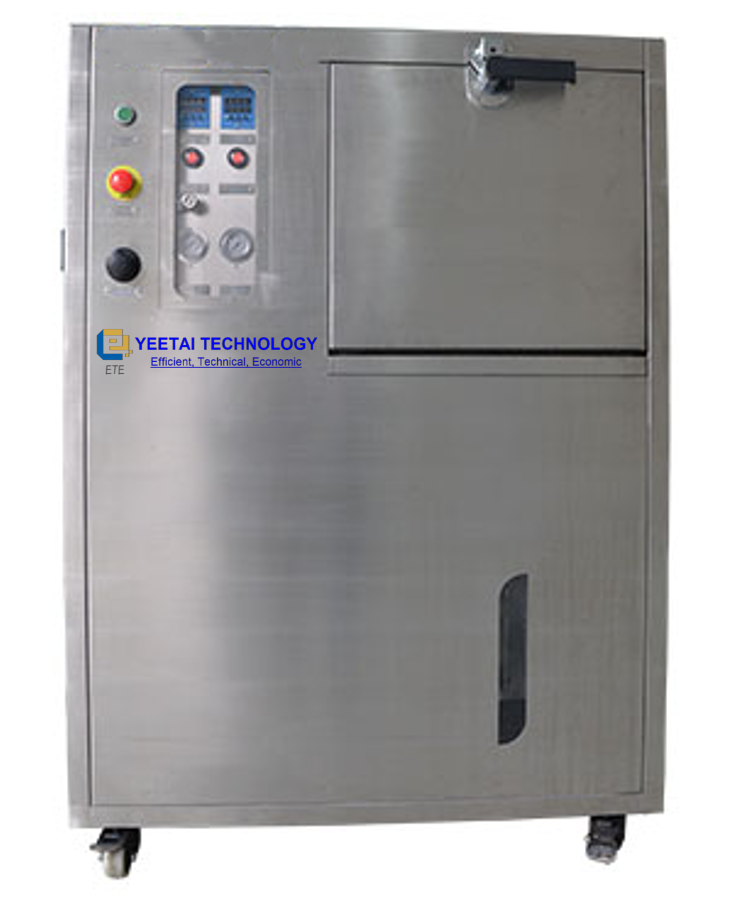

Our Mis-Print PCB Cleaner ET-2210P is specifically engineered to effectively clean misprinted PCBs during the SMT (Surface Mount Technology) production process. Utilizing compressed air for power, this innovative machine employs a top-down spray cleaning method and features a user-friendly one-touch operation to autonomously complete the entire cleaning and drying process. This efficiency enhances productivity while maintaining high-quality standards in electronic manufacturing.

Mis-Print PCB Cleaner
Mis-Print PCB Cleaner

Key Features of the Mis-Print PCB Cleaner ET-2210P

1. Durable Construction

Crafted from 304 stainless steel, the machine is corrosion-resistant and designed to endure the rigors of industrial environments. With a projected lifespan of up to 10 years, the Cleaner guarantees reliability and longevity.

2. Compressed Air Operation

Eliminating electrical hazards, the ET-2210P operates entirely on compressed air. This feature significantly reduces the risk of sparks or electrical fires, making it a safe choice for production lines.

3. Versatile Cleaning Solutions

The cleaner is compatible with both solvent and water-based cleaning solutions, offering flexibility to adapt to various production needs.

4. User-Friendly One-Touch Operation

The one-touch operation simplifies the cleaning and drying process, enhancing workflow efficiency. Operators can easily initiate cleaning cycles, resulting in faster turnaround times.

5. Convenient Pull-Out Cleaning Basket

Featuring a pull-out cleaning basket design, this machine streamlines the loading and unloading of items, enhancing convenience and improving overall productivity during the cleaning process.

6. Automated Liquid Management

Equipped with automatic liquid addition and drainage functions, the ET-2210P minimizes manual intervention while ensuring optimal performance and maintenance.

7. Efficient Circulation and Filtration System

The automatic circulation and filtration system reduces solvent consumption and waste, promoting cost-effectiveness and environmental sustainability throughout the cleaning process.

8. Safety-First Design

The machine prioritizes operator safety with an internal locking safety door mechanism. Operations cease immediately when the door is opened, preventing accidents and ensuring a safe working environment.

9. High-Precision Filtration System

With a three-layer filtration system that filters particles as small as 1 micron, the cleaner maximizes the effectiveness of cleaning solutions through efficient solvent recycling, ultimately optimizing resource use.

10. Reliable Components

Incorporating globally recognized components, the Mis-Print PCB Cleaner ET-2210P ensures long-term stability and reliability in operations, making it a trusted solution for maintaining cleanliness in SMT production facilities.

Mis-Print PCB Cleaner
Mis-Print PCB Cleaner

Specification

Machine NameMis-Print PCB Cleaner ET-2210P
Basket sizeL420 x W420 x H200 (mm)
Liquid tank capacity50L
Cleaning time3~6min
Drying time3~6min
Air Pressure Requirement0.5~0.7Mpa
Air consumption400~600L/min
Cleaning method360°rotating jet cleaning + high pressure air jet drying
Filtration system1mm/100um/1um three-stage filtration
Machine dimensionsL1060 x W800 x H1600(mm)
Machine weight260KG

Conclusion

Our Mis-Print PCB Cleaner ET-2210P stands out as an exceptional solution for efficiently cleaning misprinted PCBs in SMT manufacturing. Its durable construction, safety features, and advanced cleaning capabilities help maintain high-quality standards while optimizing workflow and productivity.


For more details or to place an order, contact us today!
