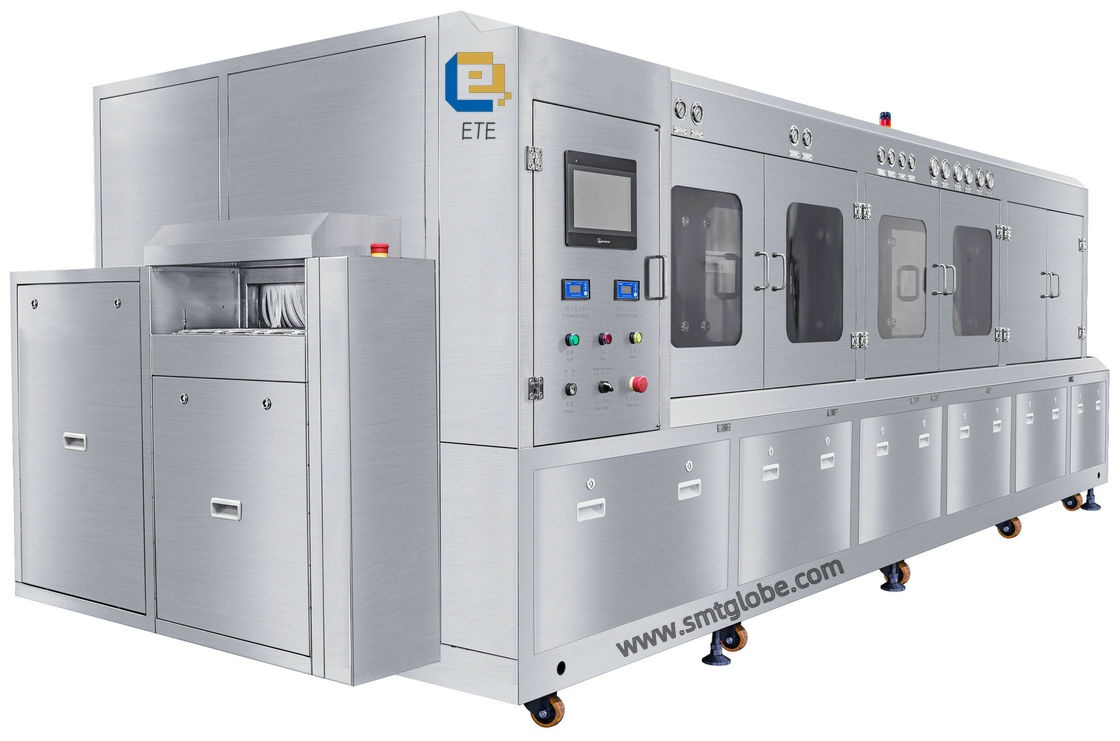

High-Efficiency Inline PCBA Cleaning Machine for Precision Industries
Our Inline PCBA Cleaning Machine is expertly designed for rigorous cleaning requirements in military, aerospace, medical, new energy vehicles, and automotive electronics industries. This machine is adept at handling various types and large volumes of PCBA boards with precision.
Key Features and Benefits of Inline PCBA Cleaning Machine
Effective Cleaning Solutions:
Efficiently removes residual flux from SMT and THT soldered PCBs, including rosin flux, water-soluble flux, no-clean flux, and other organic and inorganic contaminants.
- Capable of cleaning misprinted PCBs with excess solder paste and removing solder paste from blades.
- High-Volume Capacity: Specifically engineered for high-volume production, ensuring thorough cleaning of products in large batches.
- Features a dual-tank design, compatible with both water washing and chemical cleaning processes.
- Durable Construction:
- Constructed from imported Taiwanese PP (polypropylene) panels, known for excellent oxidation resistance, ensuring longevity. The machine maintains a like-new appearance even after years of use.
- The superior chemical properties of PP allow compatibility with both alkaline and acidic cleaning agents without restrictions, outperforming stainless steel machines in acid and alkali resistance.
- All tank bases are reinforced with triple welds to guarantee leakage-free operation.
Streamlined Cleaning Process of Inline PCBA Cleaning Machine
- Manual Product Insertion: Easy to load your PCBA into the machine.
- Conveyor Belt Operation: Automatically rotates to guide products through the cleaning cycle.
- Multi-Stage Cleaning:
- Spray Pre-Cleaning
- Air Knife Isolation
- Spray Cleaning
- Spray Pre-Rinsing
- Air Knife Isolation
- Multiple Rinsing Stages: Three different rinsing cycles ensure thorough removal of any residues.
- Drying Process: Heated air drying to enhance drying efficiency before manual removal of products.
Advanced Equipment Characteristics
- Full Process Visualization: A transparent cleaning chamber window provides clear visibility of the entire cleaning process.
- Comprehensive Cleaning System: Switch seamlessly between water and chemical washing to meet diverse cleaning needs for residual flux and contaminants.
- Fully Automatic Operation: Automates the cleaning, rinsing, and drying processes within one chamber using efficient spray methods.
- Patented Nozzle Design: Gradient and staggered nozzle distribution optimizes cleaning coverage, eliminating blind spots.
- Adjustable Nozzle System: Protects small-sized PCBAs from damage due to high-pressure spraying.
- Internal Heating System: Increases cleaning efficiency, reduces cleaning times, and enhances effectiveness.
- Robust Design: Ou Inline PCBA Cleaning Machine features three stages of cleaning, four stages of rinsing, and a long infrared hot air-drying section for optimal results.
- 304 Stainless Steel Structure: Ensures durability and resistance to various cleaning agents.
Specification
| Model | Inline PCBA cleaning machine ET-6000E |
| Conveyor Belt Width | 500mm |
| Conveyor speed | 100~150cm/min |
| Conveyor height | 900±50mm |
| PCBA transfer direction | From left to right |
| Maximum width of PCBA | 500mm |
| Maximum PCBA height | 100mm |
| Cleaning liquid tank capacity | 120L |
| Rinse water tank capacity | 60L |
| Cleaning liquid heating | RT~80℃ |
| Rinse water heating | RT~60℃ |
| Drying heating | RT~100℃ |
| DI water usage | 400~800L/H |
| Exhaust volume | 36m³/H |
| Control method | PLC |
| Power supply/gas source | 380VAC,3P,50/60HZ,110KW/0.5Mpa,200L/Min |
| Resistivity test range | 0~18MΩ |
| Machine Dimensions | l5200*w1650*h1650mm |
| Machine Weight | 3000KG |
Conclusion
Investing in our Inline PCBA Cleaning Machine will elevate your production standards by ensuring immaculate clean PCBA surfaces, free from contaminants. Enhance your operational efficiency and product reliability with our state-of-the-art cleaning technology.
For inquiries and to learn more about how our solutions can meet your specific cleaning needs, please contact us today!
