ESD Magnifier with Lamp ETE-127

The ESD Magnifier with Lamp is a magnifier with LED illumination . It is useful on the production line of an electronic factory, for soldering circuit boards, and BGA rework.

Share

ESD Magnifier with Lamp ETE-127 is a magnifier with LED illumination . It is useful on the production line of an electronic factory, for soldering circuit boards, and BGA rework. The main function of this product is to provide users with a clearer view of the target object, making it easier to observe and work with precision.

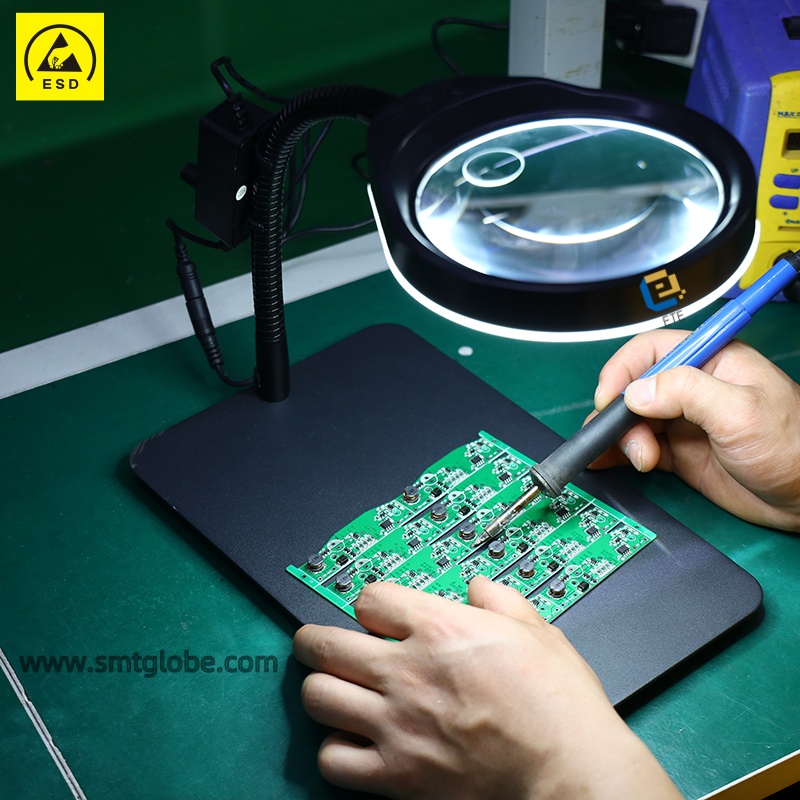

ESD Magnifier with Lamp
ESD Magnifier with Lamp

Specification:

Product NameESD Magnifier with Lamp ETE-127
Lens magnification10X, 10/20X (lenses available in white glass/green glass)
Diameter/Material97mm/ glass lens + metal hose + ABS lamp head
plastic base190*300mm
metal pipe wall220mm+280mm
light source48 SMD LED lamp beads
Power supplyPowered by USB interface
Applicable voltage5V power interface, optional 100-25V power adapter
colorBlack, White
Scope of applicationElectronic maintenance/SMT factory/teaching experiment, etc.

Features

The glass lens of the ESD Magnifier with Lamp protects your eyes and provides a wide field of view. It is suitable for mobile phone repairs, circuit board repairs, and other electronic repairs.

The ESD Magnifier with Lamp comes with a cantilever bracket that can rotate and fold. It features damping springs with adjustable angles on the bracket for stability and adjustable tightness.

Using the principle of damping, the lamp head of the ESD Magnifier with Lamp can rotate 360 degrees for full-angle illumination without dead angles, making it convenient to use.

It aims to be closer to nature and protect your eyes better. It is flicker-free, glare-free, shadow-free, and UV-free.

The clamp design saves space, and the metal bracket is sturdy, ensuring clear magnification without distortion.

The ESD Magnifier with Lamp features a large working platform with a storage tool box.

With an enlarged workbench area and non-slip foot pads at the bottom, it remains stable without tipping over. The tool storage box design is convenient and organized.

It has a detachable design: the bracket and base can be separated for easy carrying. When in use, simply connect and tighten the rotation.

The ESD Magnifier with Lamp is made using German craftsmanship, with glass lenses that have high hardness and transparency, low dispersion coefficient, and provide clear and bright imaging.

LED lighting for nighttime illumination is convenient, with 48 surface-mounted lamp beads arranged in a ring for a wider lighting area.

High brightness without glare, with a lampshade to prevent eye strain, meeting the needs of circuit board repairs, soldering, and reading illumination.

It offers three color temperatures (cool white light, natural light, warm yellow light) to meet various lighting needs, providing soft and non-glaring light.

Focused on quality, it offers a more detailed user experience. The base is stable and not easily overturned.

It features a stepless knob for brightness adjustment.

For the three-color light, there is no dimming knob on the lamp head: there is a dimmer with a switch button on the power cord for adjusting brightness.

For the single-color light, there is a dimming knob on the lamp head: a stepless switch for adjusting brightness.

It comes with a built-in USB data cable, compatible with various power supply methods, plug-and-play, and convenient to carry.

Comes with a standard 3C power plug, with multiple national standard plugs to choose from.

Instructions for Using the ESD Magnifier with Lamp:

  1. Pre-use Inspection: Carefully check if the power cord connection is secure, inspect if the screws at the joint of the movable arm are loose, gently pull the movable arm to ensure smooth movement. If there is difficulty in movement, apply lubricating oil at the joint of the movable arm.
  2. Operation: Before use, turn on the power switch to activate the light. Place the product or item to be observed on the work platform directly below the magnifying lens.
  3. Focusing: While looking at the lens, adjust the position of the magnifying glass until the image is large and clear.
  4. After Use: Turn off the power switch, remove the sample to keep the work surface clean, and gently press the mirror disk of the ESD Magnifying Lamp onto the work platform with both hands.
