multifunctional component lead cutter and former ETE-0025

The component lead cutter and former ETE-0025 provides an efficient and multifunctional cutting of axial tape and loose components at the same time. The lead cutting and forming machine is versatile to process components such as resistor, diode, and fuse etc. It can not only form the axial component lead into a “K” shape, but also turn the axial component into a ‘vertical mount part’. It processes up to 6600 components per hour.

Share

Description

The component lead cutter and former ETE-0025 is a high-performance machine for precision shaping and efficient processing of axial components. With a fully mechanical structure featuring Japanese SKD11 blade material and Omron/Delixi electrical components, this machine offers high processing efficiency of 6600pcs/H. The machine comes with automatic and inching selection, adjustable lead cutting length, and screw adjustment with a reference scale. The machine is suitable for vertical K-foot forming and lead cutting of bulk and tape resistors and diodes. Automatic leakage detection and fault alarm functions, along with a user-friendly human-machine interface, ensure seamless operation. Elevate your manufacturing capabilities with the ETE-0025 and stay ahead in the electronic component industry.

axial and vertical mount fuse
axial and vertical mount fuse

Equipment Overview:

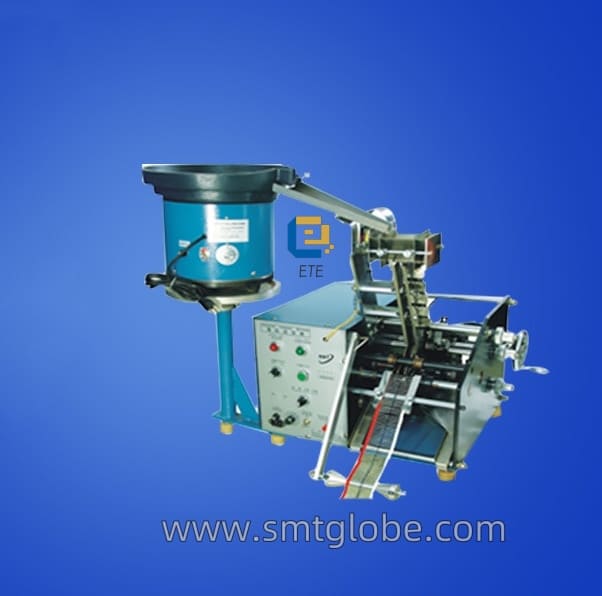

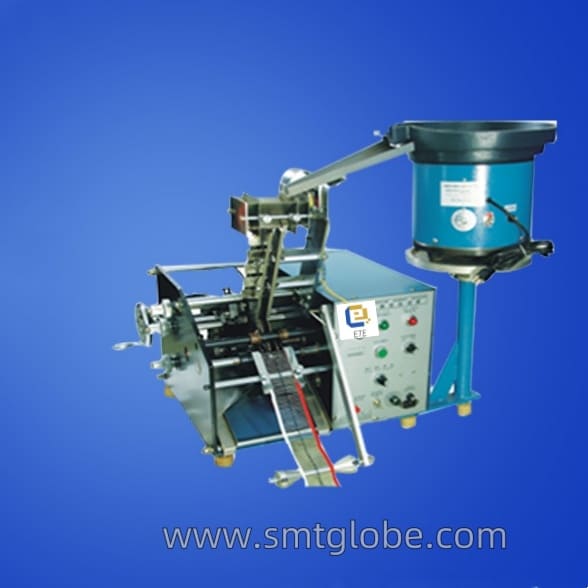

  1. Bulk materials are fed into the main machine through a vibrating disc and an S-shaped descending track.
  2. Gear, cam, groove wheel, and pulley combination form a fully mechanical structure.
  3. Motor-driven, adjustable speed.
  4. After the secondary lead cutting, the components are fed into the mold structure by the indexing disc, completing the radial bending, “K-shape” forming, and material return.

Machine specification:

Product Name: multifunctional component lead cutter and former

Model: ETE-0025

Type: Forming Machine, Lead Cutting Machine

Blade Material: Japanese SKD11

Electrical Components: Omron/Delixi

Power Supply: 220VAC/50HZ

Sheet Metal Process: High-temperature powder coating/surface anodizing/hard chrome

Dimensions: L550xW450xH420mm

Weight: 110Kg

Processing Efficiency: 6600pcs/H

Electric Power Voltage 220 (V)

Feeding Type: Fully automatic

Processing Quantity: 1000

Equipment Usage: forming and lead cutting machine for bulk and tape resistors/diodes and other axial components.

Features

Features of component lead cutter and former:

1. component lead cutter and former is suitable for tape-fed and loose resistor, diode and other axial parts.

2. Forming, cutting feet in one go, molding foot length, span is adjustable, processing capacity;

3. For U-type (horizontal) F-type (vertical) and S-type (specifically for the molding machine horizontal span of smaller parts) molding and cutting feet

4. Molding, cutting feet a one-time completion, processing capacity is strong, can also cut feet without molding.

5. Molding span, foot length can be adjusted.

6. The cutter is made of imported steel from Japan, which has a long service life.

7. Motor and electric parts are Taiwan and Japan products.

8. It can be equipped with automatic feeding vibration disk, fully automatic feeding.

9. Axial component lead can be formed into U-type (horizontal), F-type (vertical) (two shapes can not be common, each type of machine molds can only be independent processing of a component)

10. Another U-type has a special specification for the US-type, specifically for the molding of components with a small span.

General component lead cutter and former can also be molded for axial electronic components.
